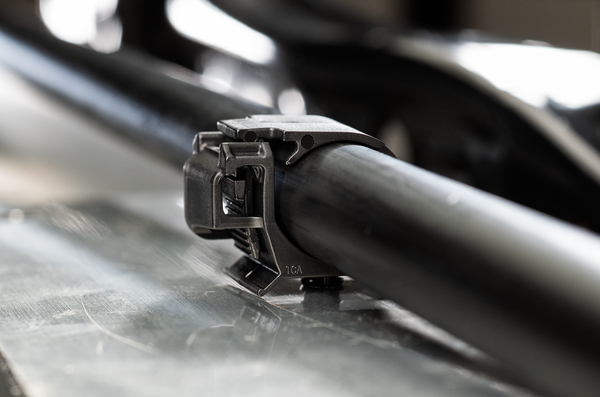

Ratchet O-Clamp, 6.5 mm Fir Tree Mount, 0.73 - 0.88" Bundle Dia, PA66HIRHSUV, Black, 10/bag
Art.-No. 151-04403
|
|
Copied
- Compact size for mounting in tight spaces.
- Long 6.5 mm fir tree allows clip to be installed in panels up to 6 mm thick and hole sizes from 6.1 - 7.0 mm.
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
- Fully enclosed clamp prevents slip, crush and fallout under vacuum.
- Release feature opens by inserting a screwdriver, allowing the clamp to be reused or serviced without removing it from mounting surface.
Show more
Show less
| Application | The Ratchet O-Clamp is designed for tight spaces, maintaining a low profile while providing an adjustable closure for a range of bundle sizes. It is intended for fluid routing and high-voltage cable management. An integrated fir tree provides a secure grip in round mounting holes with no additional hardware required. |
| Color | Black (BK) |
| Description | The Ratchet O-Clamp is designed for tight spaces, maintaining a low profile while providing an adjustable closure for a range of bundle sizes. It is designed for fluid routing and high-voltage cable management. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware. |
| PART DESCRIPTION | ROC18.5-22.5FT6.5-PA66HIRHSUV-BK |
| Packaging Type | bag |
| Part No. | 151-04403 |
| Product Subfamily | Ratchet O-Clamps |
| Product family | Ratchet Clamps |
| Short Description | Ratchet O-Clamp, 6.5 mm Fir Tree Mount, 0.73 - 0.88" Bundle Dia, PA66HIRHSUV, Black, 10/bag |
| Type | ROC18.5-22.5FT6.5 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.72" |
| Bundle Diameter Max. (metric) | 22.5mm |
| Bundle Diameter Min. (imperial) | 0.73" |
| Bundle Diameter Min. (metric) | 18.5mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 3.30" |
| Height (metric) | 83.7mm |
| Length (imperial) | 2.29" |
| Length (metric) | 58.1mm |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| Mounting Hole Diameter (imperial) | 0.24 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.1 - 7.0 mm |
| Mounting Hole Shape | Circular |
| Panel Thickness (imperial) | 0.02 - 0.24" |
| Panel Thickness (metric) | 0.6 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 1.14" |
| Width (metric) | 28.9mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
