Inline Ratchet Clamp for ATI, 0.50 - 0.77" Bundle Dia, PA66HIRHSUV/SS, Black, 200/ctn
Art.-No. 156-04196
|
|
Copied
- One-piece ratchet clamp can be pre-installed on the torque tube, even prior to arrival of modules and wire harnesses onsite.
- Quick, toolless, one-handed installation is easier and safer for installers.
- Releasable and re-closeable clamp allows for adjusting or adding wires.
- Plastic construction won’t cut or chafe wires.
- Clamp saddle provides additional routing option using a cable tie, eliminating the need to drill or add complex routing parts.
- Impact modified, heat and UV stabilized PA66 provides long-term durability in extreme environments.
- ATI-specific stainless steel mounting clip designed to last through severe weather and single axis tracker movement.
Show more
Show less
| Application | The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws. |
| Color | Black (BK) |
| Compatible with | Array Technologies |
| Description | The ATI (Array Technologies) Ratchet Clamp attaches to Array Technologies torque tubes without any additional hardware. It offers one-handed, toolless simplicity and size versatility for managing wires and cables on solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes for single-diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it. |
| PART DESCRIPTION | IRCBATI-PA66HIRHSUV/SS304-BK |
| Packaging Type | pack |
| Part No. | 156-04196 |
| Product Subfamily | Inline Ratchet Clamps |
| Product family | Ratchet Clamps |
| Short Description | Inline Ratchet Clamp for ATI, 0.50 - 0.77" Bundle Dia, PA66HIRHSUV/SS, Black, 200/ctn |
| Type | IRCBATI |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.77" |
| Bundle Diameter Max. (metric) | 19.6mm |
| Bundle Diameter Min. (imperial) | 0.5" |
| Bundle Diameter Min. (metric) | 12.7mm |
| Fixation Method | Mounting Hanger |
| Length (imperial) | 3.15" |
| Length (metric) | 79.9mm |
| Releasable Closure | Yes |

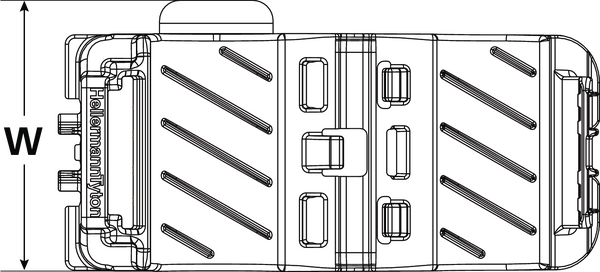

| Width (imperial) | 1.37" |
| Width (metric) | 34.8mm |
| Width 2 (imperial) | 0.66" |
| Width 2 (metric) | 16.8mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, SS304 |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Stainless Steel (SS304) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
