1/4" Threaded Rod Mount Ratchet Clamp, 0.76 - 1.42" Bundle Dia, PA66HIRHSUV, Black, 150/bg
Art.-No. 151-03553
|
|
Copied
- Smaller footprint for applications where space is constrained.
- Can be hand-twisted onto a threaded rod, allowing for quick installation, adjustment or removal.
- Clamp interior is designed to guide and center bundles to reduce pinching.
| Application | The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws. |
| Color | Black (BK) |
| Description | The Threaded Rod Mount Ratchet Clamp offers versatility when managing conduit, wires, cables and hoses. Specially designed for locations with space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. |
| PART DESCRIPTION | CMRCCTR14-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-03553 |
| Product Subfamily | Inline Ratchet Clamps |
| Product family | Ratchet Clamps |
| Short Description | 1/4" Threaded Rod Mount Ratchet Clamp, 0.76 - 1.42" Bundle Dia, PA66HIRHSUV, Black, 150/bg |
| Type | CMRCCTR14 |
| UV Resistant | Yes |
| Attaches to Diameter (imperial) | 0.25 " |
| Attaches to Diameter (metric) | 6.35 |
| Bolt Size (imperial) | 0.25 " |
| Bolt Size (metric) | 6.35 mm |
| Bundle Diameter Max. (imperial) | 1.42" |
| Bundle Diameter Max. (metric) | 36.1mm |
| Bundle Diameter Min. (imperial) | 0.76" |
| Bundle Diameter Min. (metric) | 19.3mm |
| Fixation Method | 1/4" threaded rod |
| Height (imperial) | 1.20" |
| Height (metric) | 30.4mm |
| Hole Depth Max. (imperial) | 6.50" |
| Hole Depth Max. (metric) | 165.0mm |
| Length (imperial) | 4.93" |
| Length (metric) | 125.3mm |
| Min. Tensile Strength (imperial) | 250lbs |
| Min. Tensile Strength (metric) | 1112N |

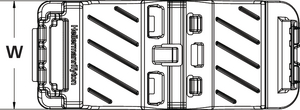

| Width (imperial) | 1.38" |
| Width (metric) | 35.1mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL File Number [Logo] | E523406 [UL] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
