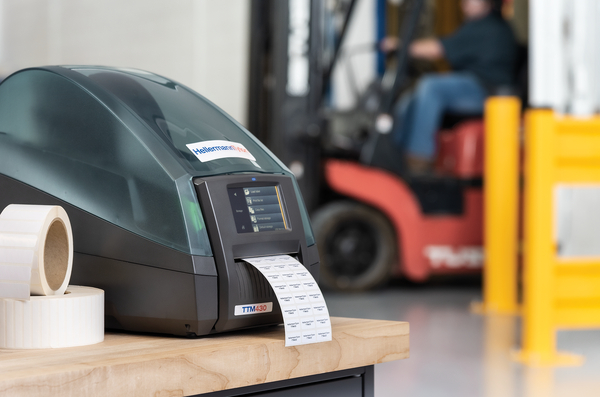

TTM430 Thermal Transfer Printer, 300 dpi, Gray, 1/pkg
Art.-No. 556-00430
|
|
Copied
- 300 dpi print head for high resolution printing.
- Ethernet ready for easy network connectivity.
- Print speeds up to 7.87 in / second for fast label production.
- Adjustable gap sensor so that the printer can detect a wide variety of label types.
- Floating print head to automatically adjust to varying media thickness such as printable heat shrink tubing.
- Optional cutter faceplate for automatic cutting and kitting of printed labels.
- Wireless network ready for full production control.
- LCD touch screen for easy reference of network status, date, time, print head temperature and ribbon usage.
Show more
Show less
| Color | Gray (GY) |
| Description | HellermannTyton's TTM430 and TTM460 Series thermal transfer printers are designed for medium- to high-volume users of thermal transfer labels and ShrinkTrak. Their user-friendly design features a streamlined menu for simple navigation, while the built-in caddy allows even the largest label rolls to fit inside. The optional cutter can cut through the thickest material. The TTM430's 300 dpi print head delivers excellent results and the TTM460's 600 DPI print head provides the highest quality printing available. These printers handle all sizes of HellermannTyton's ShrinkTrak markers and can print on even the smallest labels. |
| PART DESCRIPTION | TTM430-PL-GY |
| Packaging Type | pack |
| Part No. | 556-00430 |
| Print Method | thermal transfer |
| Print Resolution DPI | 300dpi |
| Product Subfamily | Thermal Transfer Printers |
| Product family | Label Printers |
| Short Description | TTM430 Thermal Transfer Printer, 300 dpi, Gray, 1/pkg |
| Technical Description | Thermal Transfer Printer, TTM430, 300 DPI, Gray |
| Type | TTM430 |
| UV Resistant | No |
| Depth (imperial) | 17.1" |
| Depth (metric) | 435mm |
| Height (imperial) | 12.28" |
| Height (metric) | 312mm |
| Label Height Max. (imperial) | 78.0" |
| Label Height Max. (metric) | 1981.2mm |
| Length (imperial) | 16.0" |
| Length (metric) | 406.4mm |
| Max. Label Width | 116mm |
| Max. Label Width (imperial) | 4.56" |
| Width (imperial) | 9.4" |
| Width (metric) | 240mm |
| CE Certification | Yes |
| CSA Certified | No |
| Material | PL |
| Material | Plastic (PL) |
| Max. Print Width | 101.6mm |
| Max. Print Width | 4" |
| Operating Temperature | +40°F to +104°F (+4°C to +40°C) |
| Print Head Type | 300 dpi |
| Print Speed | 7.87" (199.8 mm)/sec. |
| Printer Interfaces | RS232-C, Ethernet, USB v2.0 and Centronics |
| Printer Memory | 64MB RAM |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | DK-72568-MI-UL [cULus] |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
