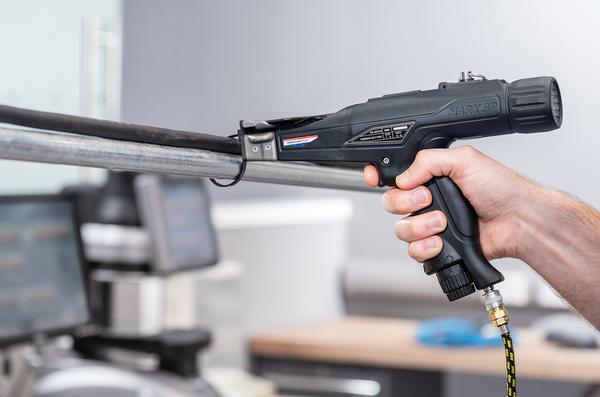

MK9 Pneumatic, Handle Air Supply Connection, Plastic Housing, 1/Pkg
Art.-No. 110-09101
| MK9P
|
Copied
- Tool made of heavy duty parts to ensure optimum performance in demanding environments.
- Ideal for heavy-duty ties (T50-T250), clamp and button head ties.
- Same ergonomic improvements as the MK7P.
- Low weight, comfortable grip and easy trigger depression.
- Very durable, with adjustable, easy to read tension settings.
- Lock-out features available.
- Comes with lower air attachment, and optional upper air attachment.
Show more
Show less
| Application | The MK9 P is constructed with heavy duty parts to ensure optimum performance. It is ideally designed to apply heavy-duty ties like they are used in vehicle construction like trucks, busses and railways. |
| Air Pressure Max. | 6Bar |
| Air Supply | non lubricated, oiled |
| Color | Black (BK) |
| Cycle Time | 2 strokes per second |
| Description | The Mark 9 Pneumatic (MK9P) is constructed with heavy duty parts to ensure that it performs optimally in demanding environments. It is ideally designed to apply heavy-duty ties (T50-T250), clamp and button head ties. Like the MK7P, HellermannTyton's MK9P incorporates the next level of ergonomic improvement with its low weight, comfortable grip and easy trigger depression. Very durable, the pneumatic MK9P features adjustable, easy to read tension settings. Lock-out features are available. The MK9P is available with lower air attachment (standard) or can be ordered with an upper air attachment. |
| For Cable Tie Width (imperial) | 0.18 - 0.53" |
| For Cable Tie Width (metric) | 4.6 - 13.5mm |
| Operation | pneumatic |
| PART DESCRIPTION | MK9P-PA66GF30-BK |
| Packaging Type | pack |
| Part No. | MK9P |
| Power Supply | Dry or lubricated air |
| Product Subfamily | Pneumatic Tool Accessories |
| Product family | Cable Tie Application Tools |
| Short Description | MK9 Pneumatic, Handle Air Supply Connection, Plastic Housing, 1/Pkg |
| Technical Description | Includes Mark 9 Pneumatic tool adnq uick connection fittings. Ergonomic tool uses pneumatic power and accompliues rapid tension and cut-off with one trigger depression. |
| Type | MK9P |
| UV Resistant | No |
| Air Attachment | lower air connection |
| Air Pressure Min. | 3Bar |
| Air Pressure PSI | 90Psi |
| Cable Tie Thickness Max. (imperial) | 0.10" |
| Cable Tie Thickness Max. (metric) | 2.5mm |
| Cycle Quantity | 1000000 |
| For Cable Tie Series |
T50 - T250 CTT20 - CTT175 El-TY Button Head |
| Height (metric) | 200mm |
| Hose Internal Diameter (metric) | 4.0mm |
| Length (metric) | 280mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width for Tools (metric) | 12.7mm |
| Tension Setting | Adjustable |
| Width (metric) | 55mm |
| for Air Pressure min - max | 3 - 6 Bar |
