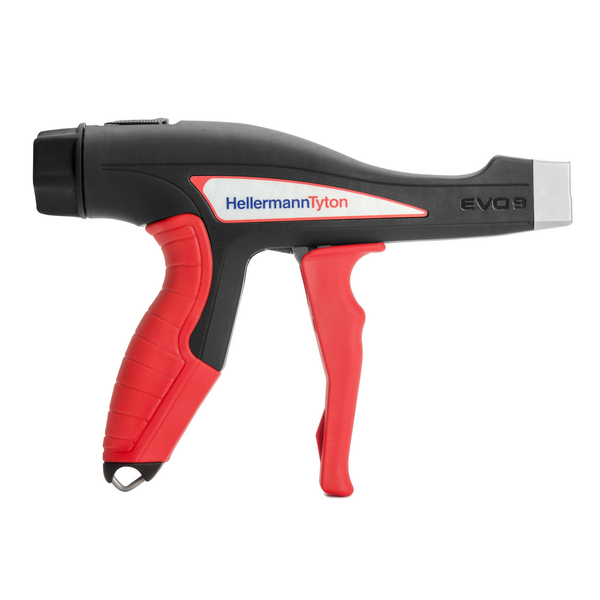

EVO 9 Mechanical Hand Tool, Standard Hand Span 90 mm, 1/pkg
Part No. 110-80000
|
Copied
- Tensions and provides clean, flush cuts for 50lb. to 250lb. cable ties, including wide strap ties.
- Impact-resistant housing and durable components for extended service life.
- Easy-to-adjust tension knob offers 33 different settings for precise, repeatable applications.
- Advanced ergonomic design minimizes necessary hand force and “kickback” to reduce repetitive-motion injuries.
| Application | The EVO9 is available in a standard grip span 90 mm (EVO9) or short grip span 80 mm (EVO9SP), for smaller hands. Both tools perform between 53N and 307N. The EVO9HT is the “high tension“ version of the EVO9 family. Developed for maximum tensile strength this tool performs between 120N and more than 516N. The EVO9 family was designed to apply HellermannTyton cable ties with a maximum width of 13 mm. |
| Color | Red (RD), Black (BK) |
| Description | HellermannTyton's EVO 9 manual cable tie application tool combines durability, precision and control with unparalleled comfort. Manufactured with high-performance materials and components, the EVO 9 cuts cable ties with up to 250-lb tensile strength. Its innovative, ergonomic design minimizes the stress on hands and wrists and “kickback” that occur with traditional tools, reducing the risk of repetitive-motion injuries. The HT model offers high tension while the SP model features a smaller grip. |
| For Cable Tie Width (imperial) | 0.18-0.53" |
| For Cable Tie Width (metric) | 4.8-13.5mm |
| Operation | manual |
| PART DESCRIPTION | EVO9-MET/PL-BK/RD |
| Packaging Type | pack |
| Part No. | 110-80000 |
| Product Subfamily | EVO |
| Product family | EVO 9 |
| Short Description | EVO 9 Mechanical Hand Tool, Standard Hand Span 90 mm, 1/pkg |
| Technical Description | Standard Hand Span 90 mm |
| Type | EVO9 |
| UV Resistant | No |
| Cable Tie Thickness Max. (imperial) | 0.08" |
| Cable Tie Thickness Max. (metric) | 2.0mm |
| For Cable Tie Series | T50, T80, T120, T150, T250, T255, WS |
| Height (imperial) | 5.3" |
| Height (metric) | 135mm |
| Length (imperial) | 7.5" |
| Length (metric) | 191mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width for Tools (metric) | 13.5mm |
| Width (imperial) | 1.3" |
| Width (metric) | 33mm |
