Magnetic J-Hook 2” Dia Hook, Side Mount, Neodymium Magnet/Steel, 90lb Pull Force, 25/box
Part No. 151-04044
|
Copied
- No drilling or extra hardware required – just position on steel surface.
- Magnetic mounts are reliable even in debris, dirt and oil.
- Use for permanent mounting or as a temporary installation tool.
- Reuse and reposition capabilities allow for a flexible mounting solution.
- Easily remove without leaving residue behind.
Show more
Show less
| Color | Zinc-plated Metal (BV) |
| Description | Magnetic J-hooks route cables by securing to steel surfaces without the need for a mounting hole. Simply hang cables within the J-hook and position the magnet onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. Magnetic J-hooks are ideal for supporting communication and data cables. The mounts are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts. |
| Global Part Number | MAGJH90SL-NDFEB45M/ST-ML |
| Magnetic pull strength (N) | 400N |
| Magnetic pull strength (kgf) | 40.79 |
| Magnetic pull strength (lb/ft) | 90lbf-ft |
| Part Number | 151-04044 |
| Product Family | Magnetic Mounts |
| Product Subfamily | Magnetic J-Hooks |
| Rotation (°) | 360° |
| Short Description | Magnetic J-Hook 2” Dia Hook, Side Mount, Neodymium Magnet/Steel, 90lb Pull Force, 25/box |
| Type | MAGJH90SL |
| Bundle Diameter Max. (imperial) | 0" |
| Bundle Diameter Min. (imperial) | 0" |
| Depth (imperial) | 2.0" |
| Depth (metric) | 50.80mm |
| Fixation Method | Magnet |
| Height (imperial) | 4.18" |
| Height (metric) | 106.12mm |

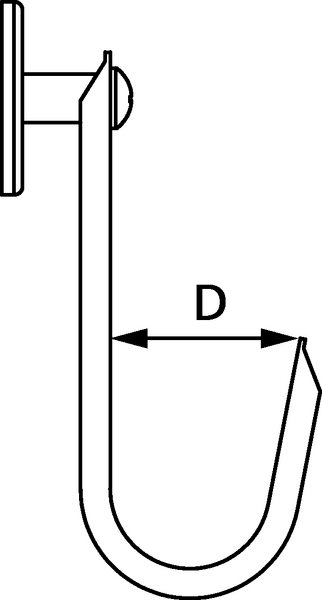

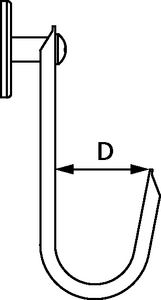

| Nominal Bundle Diameter (imperial) | 2.0 " |
| Nominal Bundle Diameter (metric) | 50.8 mm |
| Width (imperial) | 1.32" |
| Width (metric) | 33.53mm |
| CE Certification | No |
| CSA Certified | Yes |
| Halogen Free | Yes |
| Material | NDFEB45M, ST |
| Material | Neodymium alloy 45M (NDFEB45M), Steel (ST) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Plenum Rating | AH-2 |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Reusable (Y/N) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
