Magnetic Clamp, 0.50" Dia, Neodymium Magnet/POM/ST, 15lb Pull Force, Black, 100/bag
Part No. 151-03648
|
Copied
- No drilling or extra hardware required – just position on steel surface.
- Magnetic mounts are reliable even in debris, dirt and oil.
- Use for permanent mounting or as a temporary installation tool.
- Reuse and reposition capabilities allow for a flexible mounting solution.
- Easily remove without leaving residue behind.
Show more
Show less
| Color | Black (BK) |

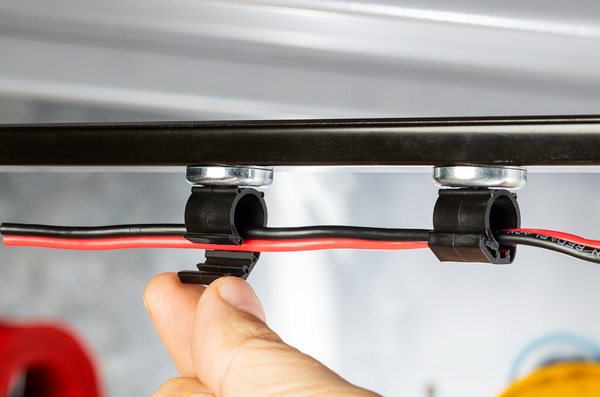

| Description | Magnetic clamps route bundles by securing to steel surfaces without the need for a mounting hole. Simply enclose the wire bundle in the clamp, close the locking clip, and position it onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. Magnetic clamps are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts. |
| Global Part Number | MAGCLMP15L-NDFEB45M/POM/ST-BK |
| Magnetic pull strength (N) | 66N |
| Magnetic pull strength (kgf) | 6.73 |
| Magnetic pull strength (lb/ft) | 15lbf-ft |
| Part Number | 151-03648 |
| Product Family | Magnetic Mounts |
| Product Subfamily | Magnetic Clips |
| Rotation (°) | 360° |
| Short Description | Magnetic Clamp, 0.50" Dia, Neodymium Magnet/POM/ST, 15lb Pull Force, Black, 100/bag |
| Type | MAGCLMP15L |
| Bundle Diameter Max. (imperial) | 0.49999999948999996" |
| Bundle Diameter Max. (metric) | 12.7mm |
| Bundle Diameter Min. (imperial) | 0" |
| Diameter (imperial) | 0.91" |
| Diameter (metric) | 23.2mm |
| Fixation Method | Magnet |
| Height (imperial) | 0.85" |
| Height (metric) | 21.5mm |

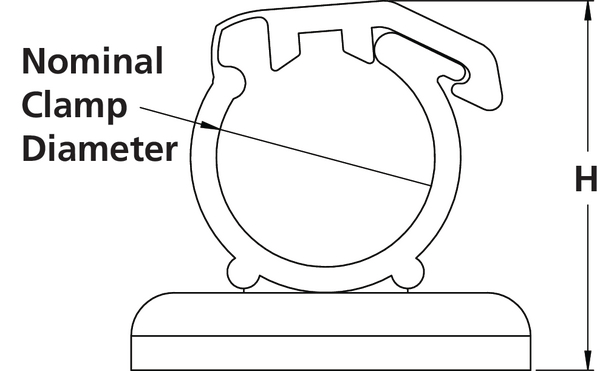

| Nominal Bundle Diameter (imperial) | 0.50 " |
| Nominal Bundle Diameter (metric) | 12.7 mm |
| Width (imperial) | 0.60" |
| Width (metric) | 15.2mm |
| CE Certification | No |
| CSA Certified | Yes |
| Halogen Free | Yes |
| Material | NDFEB45M, POM, ST |
| Material | Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Plenum Rating | AH-2 |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Reusable (Y/N) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
