Magnetic Bridle Ring with Saddle, Large, 2” Dia Ring, Neodymium Magnet/PP/ST, 90lb Pull Force, 10/box
Art.-No. 151-03651
|
|
Copied
- No drilling or extra hardware required – just position on steel surface.
- Magnetic mounts are reliable even in debris, dirt and oil.
- Use for permanent mounting or as a temporary installation tool.
- Reuse and reposition capabilities allow for a flexible mounting solution.
- Saddle included to prevent kinking of cables.
- Easily remove without leaving residue behind.
Show more
Show less
| Color | Metal (ML), Yellow (YE) |

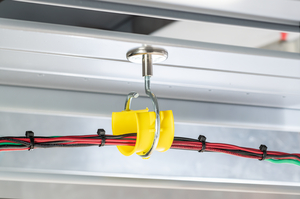

| Description | Magnetic bridle rings route cables by securing to steel surfaces without the need for a mounting hole. Simply attach cables within the bridle ring saddle and position the magnet onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. Magnetic bridle rings are ideal for supporting communication and data cables. The additional saddle helps prevent kinking of wires. The mounts are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts. |
| Magnetic pull strength (N) | 400N |
| Magnetic pull strength (kgf) | 40.79 |
| Magnetic pull strength (lb/ft) | 90lbf-ft |
| PART DESCRIPTION | MAGBR90L-S-NDFEB45M/PP/ST-ML/YE |
| Packaging Type | pack |
| Part No. | 151-03651 |
| Product Subfamily | Magnetic Bridle Rings |
| Product family | Magnetic Mounts |
| Rotation (°) | 0° |
| Short Description | Magnetic Bridle Ring with Saddle, Large, 2” Dia Ring, Neodymium Magnet/PP/ST, 90lb Pull Force, 10/box |
| Type | MAGBR90L-S |
| UV Resistant | No |
| CE Certification | No |
| CSA Certified | Yes |
| Halogen Free | Yes |
| Material | NDFEB45M, PP, ST |
| Material | Neodymium alloy 45M (NDFEB45M), Polypropylene (PP), Steel (ST) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Plenum Rating | AH-1 |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL File Number [Logo] | E64139 [cULus] |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
