Metal Solar Placard, WARNING ELECTRICAL SHOCK…, 3.75" x 2.5", AA, Orange/Silver, 5/pkg
Part No. 596-00829
|
Copied
This product is not available anymore.
- Placards made with UV stable inks and materials tested to last up to 25 years, even in direct sun exposure.
- Aggressive adhesive ensures strong bond, even on powder coated surfaces.
- Meets or exceeds NEC & IFC standards for printed text, character height, color and outdoor UV stability.
- Optional Paint Shields provide additional protection for pre-printed and variable data placards.
| Color | Orange (OG) |
| Description | Metal Solar Placards offer maximum durability and ease in code compliance. Perfect for solar applications, a special process seals metallic particles under a clear anodized layer, which results in markings that have been tested and rated to last up to 25 years in outdoor use, even in direct sunlight. Markers are designed to meet the latest National Electrical Code (NEC 2014), with pre-printed warning or caution messaging that conforms to Article 690, as well as ANSI guidelines. Pre-printed placards may be more acceptable to some local Authorities Having Jurisdiction (AHJs), who may have a preference for placard-style identification. |
| Global Part Number | WESHLBLDCM5-AA-OG |
| Part Number | 596-00829 |
| Short Description | Metal Solar Placard, WARNING ELECTRICAL SHOCK…, 3.75" x 2.5", AA, Orange/Silver, 5/pkg |

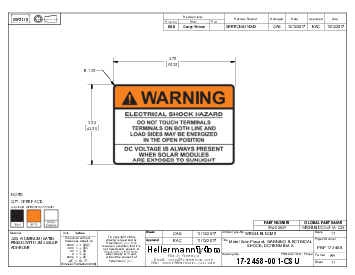

| Technical Description | 3.75" X 2.5" Black text on an Orange/Silver Aluminum background that reads as: "WARNING ELECTRICAL SHOCK HAZARD. DO NOT TOUCH TERMINALS. TERMINALS ON BOTH LINE AND LOAD SIDE MAY BE ENERGIZED IN THE OPEN POSITION. DC VOLTAGE IS ALWAYS PRESENT WHEN SOLAR MODULES ARE EXPOSED TO SUNLIGHT" - 5 per pack |
| Type | WESHLBLDCM5 |
| Adhesive | Ultra High Bond Permanent Acrylic Adhesive |
| Adhesive Operating Temperature | from +50°F (from +10°C) |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | AA |
| Material | Anodized Aluminum (AA) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +203°F (-40°C to +95°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
| Warranty | Yes |
