Heat Shrink Tubing, 2:1 Shrink Ratio, 3/16", 4.8/2.4 Dia, PO-X, Black, 984 ft/reel
Part No. 305-04800
|
Copied

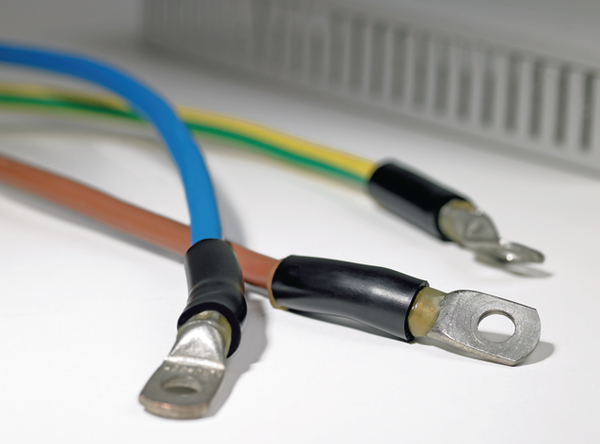

- Thin, 2:1 shrink ratio tubing provides insulation and abrasion protection for wires and cables.
- UL224 and CSA approved, for use in applications requiring the highest degree of flame protection.
- Flexible-yet-durable material resists most common oils, chemicals and fluids.
| Behavior At Low Temperature | not cracking |
| Behavior at Low Temperature test method | IEC 60684-2 |
| Brand Family | HFT-A-Series |
| Color | Black (BK) |
| Description | HFT-A is a highly flexible thin wall, heat shrink tubing with a 2:1 shrink ratio and excellent flame-retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material resists oils, solvents and chemicals. |
| Global Part Number | HFT-A-4.8/2.4-PO-X-BK |
| Heat Shock Elongation | 390% |
| Heat Shock Tensile Strength | 13MPa |
| Heat Shock Test | 4h/200°C |
| Heat shock test test method | IEC 60684-2 |
| Part Number | 305-04800 |
| Product Family | Heat Shrinkable Tubing |
| Product Subfamily | Non-Adhesive 2-to-1 Shrink Ratio |
| Short Description | Heat Shrink Tubing, 2:1 Shrink Ratio, 3/16", 4.8/2.4 Dia, PO-X, Black, 984 ft/reel |
| Type | HFT-A-4.8/2.4 |
|
|
|
| For Object Outside Diameter | 2.88-4.32 mm |
| Length (metric) | 300.0m |
| Longitudinal Change After Shrinkage | -5% max. |
| Printable | No |
| Recovered Diameter (imperial) | 0.094" |
| Recovered Diameter (metric) | 2.4mm |
| Reel Length (imperial) | 984.0ft |
| Shrink Ratio | 2:1 |
| Size (imperial) | 3/16" |
| Supplied Diameter (imperial) | 0.189" |
| Supplied Diameter (metric) | 4.8mm |
| Tensile Strength | 14MPa |
| Trade Size | 3/16 " |
| Volume Resistance | 10¹⁴ Ω cm |
| Wall Thickness (imperial) | 0.002" |
| Wall Thickness (metric) | 0.50mm |
| CSA Certified | Yes |
| Dielectric Strength (metric) | 21kV/mm |
| Dielectric Strength test method | IEC 60684-2 |
| Elongation at break (min.) | 400% |
| Elongation at break test method | IEC 60684-2 |
| Flammability | UL 224 VW-1 |
| Halogen Free | No |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-12-158-4568 |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| Self Extinguishing | Yes |
| Tensile Strength Test Method | IEC 60684-2 |
| UL File Number [Logo] | E143529 [RU] |
| UL Recognized (US) | Yes |
| Volume Resistance test method | IEC 60684-2 |
