CUSTOM PRODUCT - Heat Shrink Molded Shapes, Helashrink 500 Series, 508-3-B7, PO-X, BK, 60/bag
Art.-No. 405-08036
| 508-3-B7-PO-X-BK
|
Copied

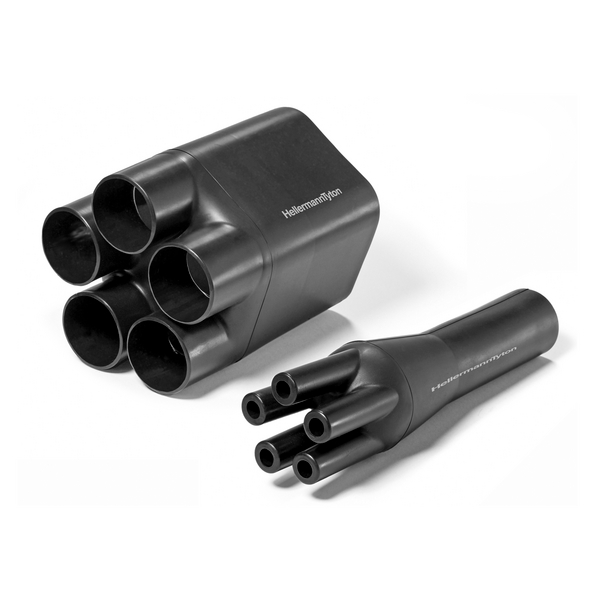

- Cable breakout boots for insulating and sealing cable crotch or conduit system
- Excellent resistance to abrasion and weathering
| Application |
Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables. |
| Color | Black (BK) |
| Description | Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. |
| PART DESCRIPTION | 508-3-B7-PO-X-BK |
| Packaging Type | box |
| Part No. | 405-08036 |
| Short Desc. | CUSTOM PRODUCT - Heat Shrink Molded Shapes, Helashrink 500 Series, 508-3-B7, PO-X, BK, 60/bag |
| Type | 508-3-B7 |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 37.4-76.1 mm |
| H Recovered Dia. Max. b (imperial) | 0.96" |
| H Recovered Dia. Max. b (metric) | 24.5mm |
| H Supplied Dia. Min. a (imperial) | 3.47" |
| H Supplied Dia. Min. a (metric) | 89mm |
| HW ± 20 % | 3.5mm |
| HW ± 20% | .14" |
| J Recovered Dia. Max. b (imperial) | .29" |
| J Recovered Dia. Max. b (metric) | 7.5mm |
| J Supplied Dia. Min. a (imperial) | 1.29" |
| J Supplied Dia. Min. a (metric) | 33mm |
| JW ± 20 % | 3mm |
| JW ± 20% | .12" |
| P ± 10 % | 180mm |
| P ± 10% | 7.02" |
| S Nominal Length (imperial) | 1.87" |
| S Nominal Length (metric) | 48mm |
| Shrink Ratio | up to 3:1 |
| Tensile Strength | 13MPa |
