Heat Shrink Molded Shapes, 400 Series 4-Way Outlet - VG, 413-1-G, PO-X, BK, 1/bag
Art.-No. 404-13015
|
|
Copied

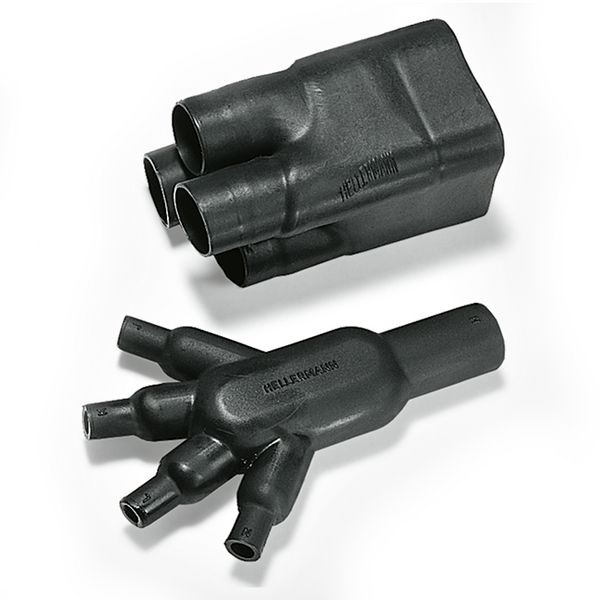

- 4-way outlet shape
- Cable sealing, strain relief and mechanical protection
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 400 series, VG style, provides cable strain relief and mechanical protection at harness transition points, all outlets are clearly marked to aid orientation on installation. |
| PART DESCRIPTION | 413-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 404-13015 |
| Product Subfamily | Heat Shrink Shapes - Multi-Outlet |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 400 Series 4-Way Outlet - VG, 413-1-G, PO-X, BK, 1/bag |
| Type | 413-1-G |
| UV Resistant | No |
|
|
|
| ⌀J/K/L/N max. b | 10mm |
| ⌀J/K/L/N min. a | 19mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 22.9-34.6 mm |
| H Recovered Dia. Max. b (imperial) | 0.74" |
| H Recovered Dia. Max. b (metric) | 19.0mm |
| H Supplied Dia. Min. a (imperial) | 1.5" |
| H Supplied Dia. Min. a (metric) | 38.5mm |
| J Recovered Dia. Max. b (imperial) | .39" |
| J Recovered Dia. Max. b (metric) | 10mm |
| J Supplied Dia. Min. a (imperial) | .74" |
| J Supplied Dia. Min. a (metric) | 19mm |
| K Recovered Dia. Max. b (imperial) | .39" |
| K Recovered Dia. Max. b (metric) | 10mm |
| K Recovered Dia. Min. a (imperial) | .74" |
| K Recovered Dia. Min. a (metric) | 19mm |
| Max. Diameter J/K/L/N b | .39" |
| Min. Diameter J/K/L/N a | .74" |
| P ± 10 % | 150mm |
| P ± 10% | 5.85" |
| S Nominal Length (imperial) | 2.56" |
| S Nominal Length (metric) | 65mm |
| Shrink Ratio | up to 3:1 |
| Tensile Strength | 15MPa |
| Tube Shape | Multi-Outlet |
