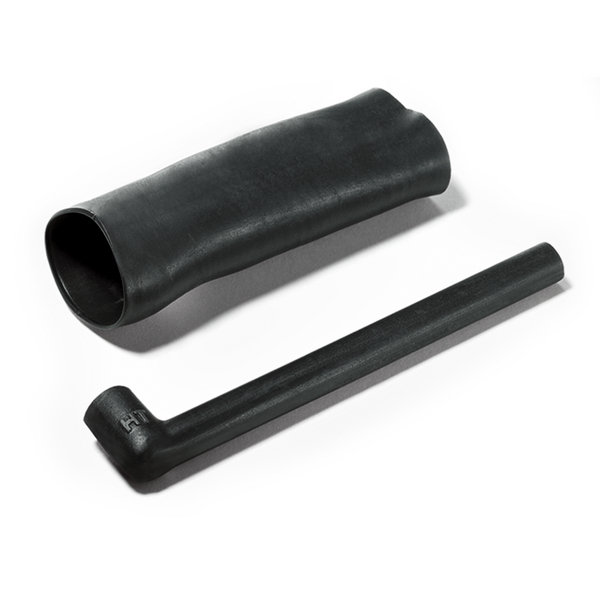

Heat Shrink Molded Shapes, Long-Tail Right-Angle Boot, 333F322-8, PEEX, BK, 5/bag
Art.-No. 422-30009
|
|
Copied
- Connector strain relief for small cable diameters requiring high shrink ratio
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Color | Black (BK) |
| Description | Long-tail right-angle boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| Global Part Number | 333F322-8-PEEX-BK |
| Packaging Type | bag |
| Part No. | 422-30009 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Long-Tail Right-Angle Boot, 333F322-8, PEEX, BK, 5/bag |
| Type | 333F322-8 |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Flexible |
| For Object Outside Diameter | 12.68-21.02 mm |
| H Recovered Dia. Max. b (imperial) | 0.39" |
| H Recovered Dia. Max. b (metric) | 9.9mm |
| H Supplied Dia. Min. a (imperial) | 0.93" |
| H Supplied Dia. Min. a (metric) | 23.8mm |
| J Recovered Dia. Max. b (imperial) | .32" |
| J Recovered Dia. Max. b (metric) | 8.1mm |
| J Supplied Dia. Min. a (imperial) | .69" |
| J Supplied Dia. Min. a (metric) | 17.7mm |
| P ± 10 % | 105.1mm |
| P ± 10% | 4.10" |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
