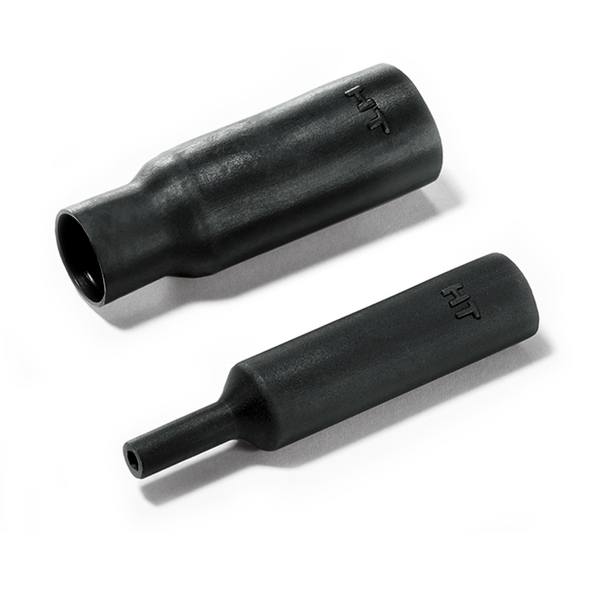

Heat Shrink Molded Shapes, Low Profile Shim Boot, 313E445-8, PEEX, BK, 5/bag
Art.-No. 422-10016
|
|
Copied
- Used to build up or shim a cable diameter
- Facilitates better fit for components in cable harness
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Color | Black (BK) |
| Description | Helashrink 313E series is normally used to build up, or shim a cable diameter to facilitate a better fit for components in a cable harness. |
| PART DESCRIPTION | 313E445-8-PEEX-BK |
| Packaging Type | bag |
| Part No. | 422-10016 |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Shim Boot, 313E445-8, PEEX, BK, 5/bag |
| Type | 313E445-8 |
| UV Resistant | No |
|
|
|
| Flexibility | Flexible |
| For Object Outside Diameter | 12.7-12.7 mm |
| H Recovered Dia. Max. b (imperial) | 0.5" |
| H Recovered Dia. Max. b (metric) | 12.7mm |
| H Supplied Dia. Min. a (imperial) | 0.5" |
| H Supplied Dia. Min. a (metric) | 12.7mm |
| J Recovered Dia. Max. b (imperial) | .13" |
| J Recovered Dia. Max. b (metric) | 3.3mm |
| J Supplied Dia. Min. a (imperial) | .43" |
| J Supplied Dia. Min. a (metric) | 11.1mm |
| P ± 10 % | 63.5mm |
| P ± 10% | 2.48" |
| Shrink Ratio | 3:1 |
| Tensile Strength | 20MPa |
| Tube Shape | Low-Profile |
