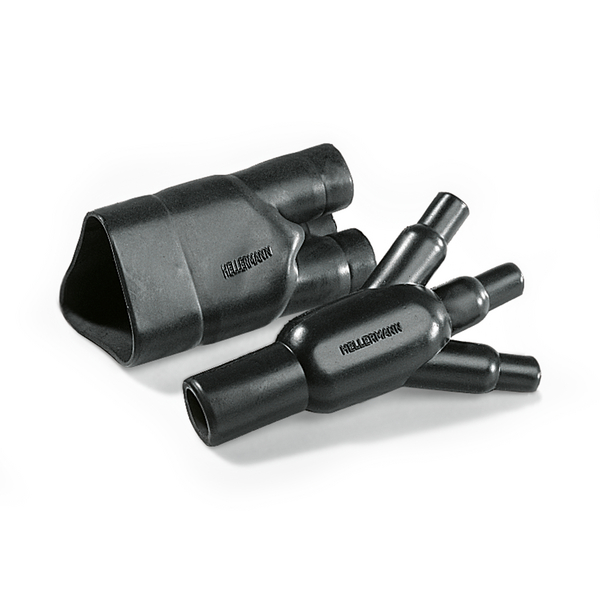

Heat Shrink Molded Shapes, 300 Series 3-Way Outlet - VG, 311-1-G, PO-X, BK, 1/bag
Art.-No. 403-11014
|
|
Copied
- Cable strain relief and mechanical protection at harness transition points
- All outlets clearly marked to aid orientation during installation
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 300 series provides cable strain relief and mechanical protection at harness transition points. All outlets are clearly marked to aid orientation on installation. |
| PART DESCRIPTION | 311-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 403-11014 |
| Product Subfamily | Heat Shrink Shapes - Multi-Outlet |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 300 Series 3-Way Outlet - VG, 311-1-G, PO-X, BK, 1/bag |
| Type | 311-1-G |
| UV Resistant | No |
|
|
|
| ⌀J/K/L max. b | 12.5mm |
| ⌀J/K/L min. a | 27mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 31.5-49.5 mm |
| H Recovered Dia. Max. b (imperial) | 0.99" |
| H Recovered Dia. Max. b (metric) | 25.5mm |
| H Supplied Dia. Min. a (imperial) | 2.16" |
| H Supplied Dia. Min. a (metric) | 55.5mm |
| HW ± 20 % | 4.5mm |
| HW ± 20% | .18" |
| J Recovered Dia. Max. b (imperial) | .49" |
| J Recovered Dia. Max. b (metric) | 12.5mm |
| J Supplied Dia. Min. a (imperial) | 1.05" |
| J Supplied Dia. Min. a (metric) | 27mm |
| K Recovered Dia. Max. b (imperial) | .49" |
| K Recovered Dia. Max. b (metric) | 12.5mm |
| K Recovered Dia. Min. a (imperial) | 1.05" |
| K Recovered Dia. Min. a (metric) | 27mm |
| Max. Diameter J/K/L b | .49" |
| Min. Diameter J/K/L a | 1.05" |
| P ± 10 % | 192mm |
| P ± 10% | 7.49" |
| Shrink Ratio | up to 3.5:1 |
| Tensile Strength | 15MPa |
| Tube Shape | Multi-Outlet |
