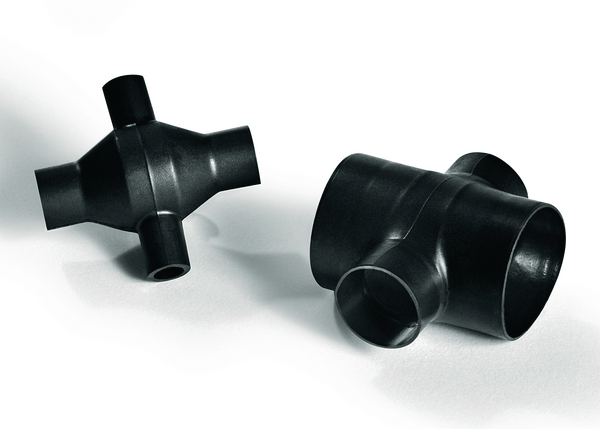

Heat Shrink Molded Shapes, 2000 Series Cross, 2003-1-G, PO-X, BK, 1/Pkg
Part No. 420-03002
|
Copied
- The right-angle cross shape allows wires to be routed in four 90° directions.
- Provides strain relief and mechanical protection.
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 200 series, T-joint, allows wires to be routed in four 90° directions, while providing strain relief and mechanical protection. Environmental sealing can be achieved when used in conjunction with one of our extensive range of adhesives. |
| Global Part Number | 2003-1-G-PO-X-BK |
| Part Number | 420-03002 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 2000 Series Cross, 2003-1-G, PO-X, BK, 1/Pkg |
| Type | 2003-1-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 11.62-17.38 mm |
| H Recovered Dia. Max. b (imperial) | 0.38" |
| H Recovered Dia. Max. b (metric) | 9.7mm |
| H Supplied Dia. Min. a (imperial) | 0.75" |
| H Supplied Dia. Min. a (metric) | 19.3mm |
| J Recovered Dia. Max. b (imperial) | .38" |
| J Recovered Dia. Max. b (metric) | 9.7mm |
| J Supplied Dia. Min. a (imperial) | .52" |
| J Supplied Dia. Min. a (metric) | 13.2mm |
| P ± 10 % | 38.1mm |
| P ± 10% | 1.49" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-792-4906 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
