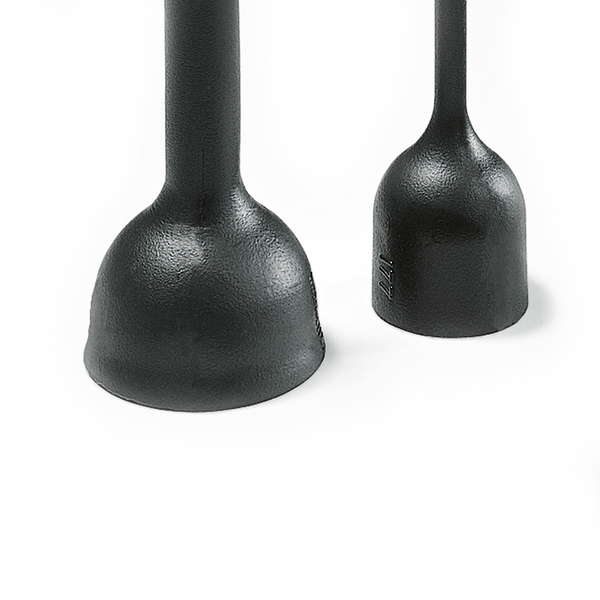

Heat Shrink Molded Shapes, 170 Series Bottle with Rib - VG, 178-1-G, PO-X, BK, 1/bag
Part No. 401-78011
|
Copied
- Cable strain relief for partially loaded connectors
- Small cable diameters
- Use with our W24 adhesive for excellent chemical resistance
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 170 series, with rib, provides cable strain relief in applications of partially loaded connectors, resulting in small cable diameters. When used in conjunction with our W24 adhesive, excellent chemical resistance can also be achieved. |
| Global Part Number | 178-1-G-PO-X-BK |
| Part Number | 401-78011 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 170 Series Bottle with Rib - VG, 178-1-G, PO-X, BK, 1/bag |
| Type | 178-1-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 27.64-32.56 mm |
| H Recovered Dia. Max. b (imperial) | 1.01" |
| H Recovered Dia. Max. b (metric) | 26.0mm |
| H Supplied Dia. Min. a (imperial) | 1.33" |
| H Supplied Dia. Min. a (metric) | 34.2mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .12" |
| J Recovered Dia. Max. b (metric) | 3.1mm |
| J Supplied Dia. Min. a (imperial) | .37" |
| J Supplied Dia. Min. a (metric) | 9.6mm |
| P ± 10 % | 84.3mm |
| P ± 10% | 3.29" |
| S Nominal Length (imperial) | 1.99" |
| S Nominal Length (metric) | 51mm |
| Shrink Ratio | up to 4:1 |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Bottle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-787-6542, 5970-12-196-5889 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
