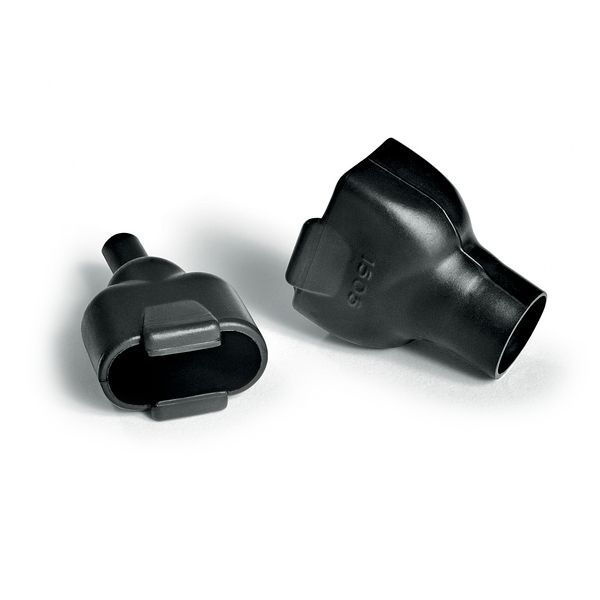

Heat Shrink Molded Shapes, 1500 Series D-Boot Straight,1505-2-B7, PO-X, BK, 1/bag
Part No. 415-05011
|
Copied
- Provides strain relief and mechanical protection for Min-D series connectors.
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1500 series, with top entry, has a unique design that allows perfect orientation on installation and can be supplied with or without lips. |
| Global Part Number | 1505-2-B7-PO-X-BK |
| Part Number | 415-05011 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Specialty |
| Short Description | Heat Shrink Molded Shapes, 1500 Series D-Boot Straight,1505-2-B7, PO-X, BK, 1/bag |
| Type | 1505-2-B7 |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 19.44-16.86 mm |
| H Recovered Dia. Max. b (imperial) | 0.79" |
| H Recovered Dia. Max. b (metric) | 20.3mm |
| H Supplied Dia. Min. a (imperial) | 0.62" |
| H Supplied Dia. Min. a (metric) | 16mm |
| J Recovered Dia. Max. b (imperial) | .42" |
| J Recovered Dia. Max. b (metric) | 10.7mm |
| J Supplied Dia. Min. a (imperial) | .62" |
| J Supplied Dia. Min. a (metric) | 16mm |
| K Recovered Dia. Max. b (imperial) | .16" |
| K Recovered Dia. Max. b (metric) | 4.1mm |
| K Recovered Dia. Min. a (imperial) | .62" |
| K Recovered Dia. Min. a (metric) | 16mm |
| P ± 10 % | 33mm |
| P ± 10% | 1.29" |
| Tube Shape | Specialty |
