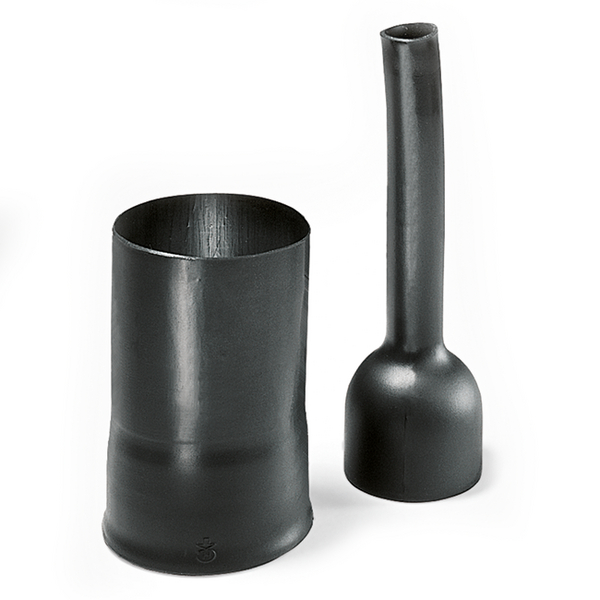

Heat Shrink Molded Shapes, 140 Series Long Outlet, 146-2-G, PO-X, BK, 1/bag
Part No. 401-46009
|
Copied
- Low profile and light weight.
- Suited for aerospace harness assemblies.
- Extended tail provides excellent strain relief and flexibility.
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 140 series, without rib, is low profile and light weight, ideally suited to aerospace harness assemblies, the extended tail provides excellent strain relief and flexibility. |
| Global Part Number | 146-2-G-PO-X-BK |
| Part Number | 401-46009 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Specialty |
| Short Description | Heat Shrink Molded Shapes, 140 Series Long Outlet, 146-2-G, PO-X, BK, 1/bag |
| Type | 146-2-G |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 16.06-20.74 mm |
| H Recovered Dia. Max. b (imperial) | 0.57" |
| H Recovered Dia. Max. b (metric) | 14.5mm |
| H Supplied Dia. Min. a (imperial) | 0.87" |
| H Supplied Dia. Min. a (metric) | 22.3mm |
| HW ± 20 % | 2.0mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .21" |
| J Recovered Dia. Max. b (metric) | 5.3mm |
| J Supplied Dia. Min. a (imperial) | .4" |
| J Supplied Dia. Min. a (metric) | 10.2mm |
| P ± 10 % | 127.0mm |
| P ± 10% | 4.95" |
| S Nominal Length (imperial) | 3.78" |
| S Nominal Length (metric) | 97.0mm |
| Tensile Strength | 15MPa |
| Tube Shape | Specialty |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
