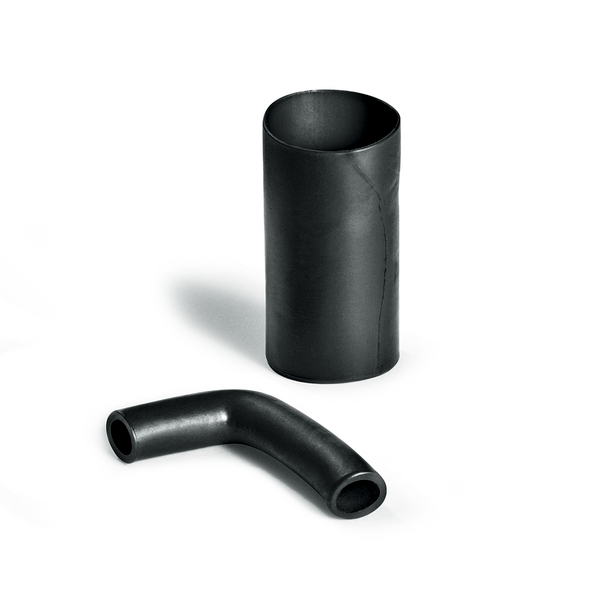

Heat Shrink Molded Shapes, 1400 Series 90-Degree Elbow, 1401-1-G, PO-X, BK, 1/bag
Art.-No. 414-01003
|
|
Copied
- Provides strain relief and mechanical protection on cable orientations up to 90°.
- Efficient design and numerous material/adhesive combinations provide quick and easy installation across a range of applications.
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1400 series provides strain relief and mechanical protection on cable orientations of up to 90°, efficient design and numerous material/adhesive combinations provide quick and easy installation across a range of applications. |
| PART DESCRIPTION | 1401-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 414-01003 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1400 Series 90-Degree Elbow, 1401-1-G, PO-X, BK, 1/bag |
| Type | 1401-1-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 18.9-28.5 mm |
| H Recovered Dia. Max. b (imperial) | 0.61" |
| H Recovered Dia. Max. b (metric) | 15.7mm |
| H Supplied Dia. Min. a (imperial) | 1.24" |
| H Supplied Dia. Min. a (metric) | 31.7mm |
| HW ± 20 % | 2.3mm |
| HW ± 20% | .09" |
| J Recovered Dia. Max. b (imperial) | .61" |
| J Recovered Dia. Max. b (metric) | 15.7mm |
| J Supplied Dia. Min. a (imperial) | 1.24" |
| J Supplied Dia. Min. a (metric) | 31.7mm |
| JW ± 20 % | 2.3mm |
| JW ± 20% | .09" |
| P ± 10 % | 88.9mm |
| P ± 10% | 3.47" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
