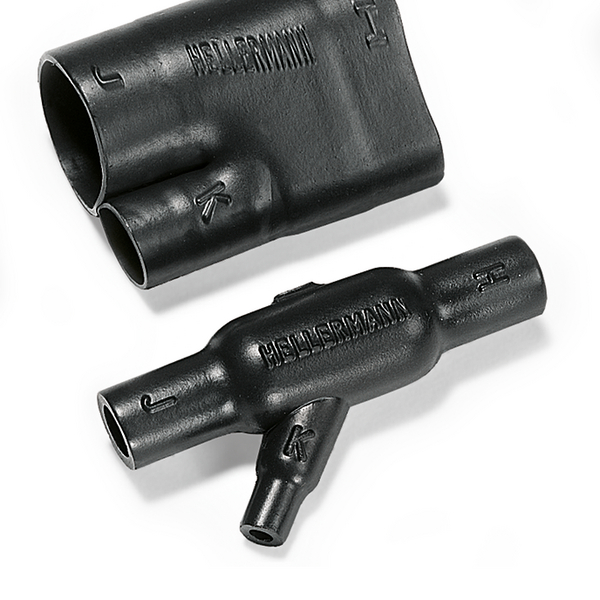

Heat Shrink Molded Shapes, 1300 Series 45 Angle T - VG,1311-1-G, PO-X, BK, 1/bag
Art.-No. 413-11010
|
|
Copied
- Strain relief, sealing and mechanical protection on cable harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1300 series features a branching part 45º (Y-joints) which are employed for mechanical tension relief in cable harnesses. |
| PART DESCRIPTION | 1311-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 413-11010 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1300 Series 45 Angle T - VG,1311-1-G, PO-X, BK, 1/bag |
| Type | 1311-1-G |
| UV Resistant | No |
|
|
|
| Angle | 30 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 18.08-27.32 mm |
| H Recovered Dia. Max. b (imperial) | 0.59" |
| H Recovered Dia. Max. b (metric) | 15.0mm |
| H Supplied Dia. Min. a (imperial) | 1.19" |
| H Supplied Dia. Min. a (metric) | 30.4mm |
| HW ± 20 % | 2.5mm |
| HW ± 20% | .1" |
| J Recovered Dia. Max. b (imperial) | .59" |
| J Recovered Dia. Max. b (metric) | 15mm |
| J Supplied Dia. Min. a (imperial) | 1.19" |
| J Supplied Dia. Min. a (metric) | 30.4mm |
| JW ± 20 % | 2.5mm |
| JW ± 20% | .1" |
| K Recovered Dia. Max. b (imperial) | .39" |
| K Recovered Dia. Max. b (metric) | 10mm |
| K Recovered Dia. Min. a (imperial) | .79" |
| K Recovered Dia. Min. a (metric) | 20.3mm |
| P ± 10 % | 82.6mm |
| P ± 10% | 3.22" |
| Shrink Ratio | up to 3:1 |
| Tube Shape | Angle |
