Heat Shrink Molded Shapes, 1300 Series 45 Angle T - VG,1303-1-GW24, PO-X, BK, 1/bag
Part No. 413-03015
|
Copied

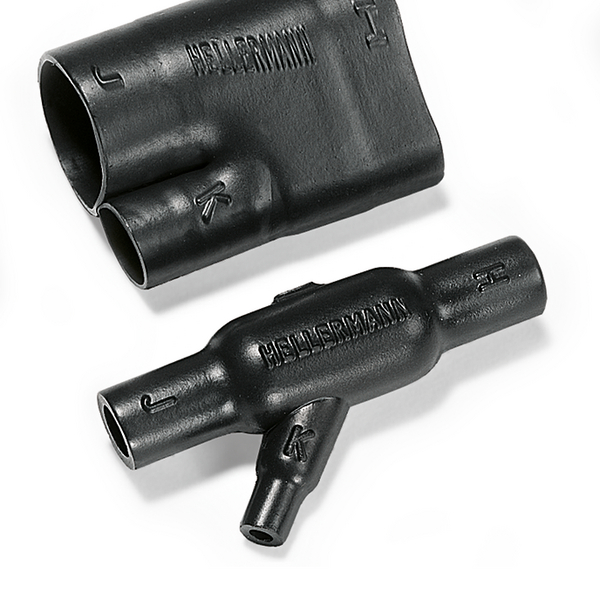

- Branching part 45 Y-joint
- Mechanical tension relief for cable harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1300 series features a branching part 45º (Y-joints) which are employed for mechanical tension relief in cable harnesses. |
| Global Part Number | 1303-1-GW24-PO-X-BK |
| Part Number | 413-03015 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1300 Series 45 Angle T - VG,1303-1-GW24, PO-X, BK, 1/bag |
| Type | 1303-1-GW24 |
|
|
|
| Angle | 45 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 16.6-24.4 mm |
| H Recovered Dia. Max. b (imperial) | 0.55" |
| H Recovered Dia. Max. b (metric) | 14mm |
| H Supplied Dia. Min. a (imperial) | 1.05" |
| H Supplied Dia. Min. a (metric) | 27mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .55" |
| J Recovered Dia. Max. b (metric) | 14mm |
| J Supplied Dia. Min. a (imperial) | 1.05" |
| J Supplied Dia. Min. a (metric) | 27mm |
| JW ± 20 % | 1.5mm |
| JW ± 20% | 0.06" |
| K Recovered Dia. Max. b (imperial) | .29" |
| K Recovered Dia. Max. b (metric) | 7.5mm |
| K Recovered Dia. Min. a (imperial) | .51" |
| K Recovered Dia. Min. a (metric) | 13mm |
| P ± 10 % | 145mm |
| P ± 10% | 5.66" |
| S Nominal Length (imperial) | 2.13" |
| S Nominal Length (metric) | 54mm |
| Shrink Ratio | up to 3:1 |
| Tube Shape | Angle |
| Adhesive | W24 |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
