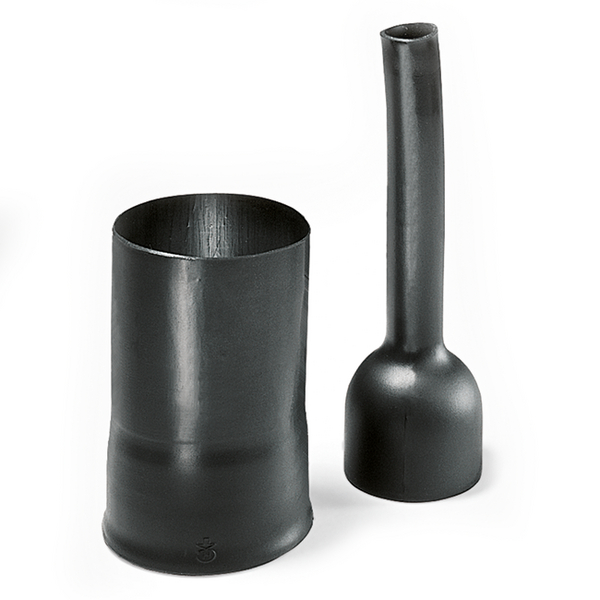

Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib, 130-4-G, PO-X, BK, 1/bag
Part No. 401-30021
|
Copied
- Low profile and lightweight
- Typically used on airborne harnesses
- Rib locates on circular backshell
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 130 Series, with rib - VG style, is a low profile and lightweight which is typically used on airborne harnesses. The rib is located on the circular backshell. |
| Global Part Number | 130-4-G-PO-X-BK |
| Part Number | 401-30021 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Specialty |
| Short Description | Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib, 130-4-G, PO-X, BK, 1/bag |
| Type | 130-4-G |
|
|
|
| For Object Outside Diameter | 17.12-23.48 mm |
| H Recovered Dia. Max. b (imperial) | 0.59" |
| H Recovered Dia. Max. b (metric) | 15.0mm |
| H Supplied Dia. Min. a (imperial) | 1" |
| H Supplied Dia. Min. a (metric) | 25.6mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .29" |
| J Recovered Dia. Max. b (metric) | 7.4mm |
| J Supplied Dia. Min. a (imperial) | 1" |
| J Supplied Dia. Min. a (metric) | 25.6mm |
| JW ± 20 % | 1.1mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 121.2mm |
| P ± 10% | 4.73" |
| S Nominal Length (imperial) | 3.83" |
| S Nominal Length (metric) | 98.2mm |
| T ± 20% | .04" |
| Tube Shape | Specialty |
