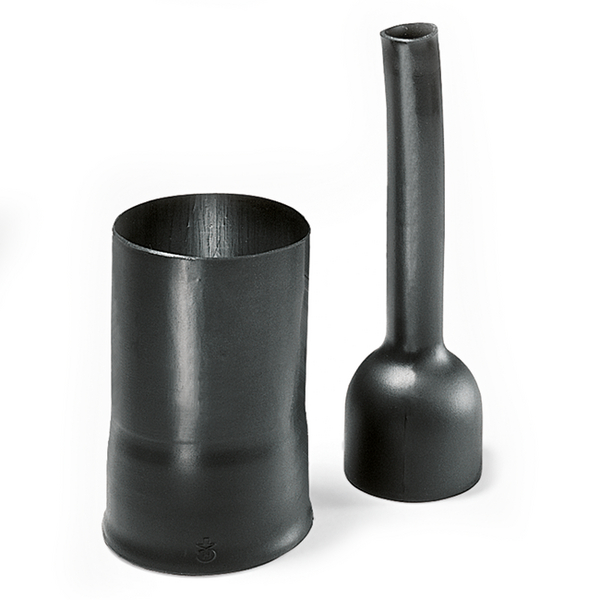

Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib,129-2-G, PO-X, BK, 100/bag
Art.-No. 401-29077
|
|
Copied
- Low profile and lightweight
- Typically used on airborne harnesses
- Rib locates on circular backshell
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 130 Series, with rib - VG style, is a low profile and lightweight which is typically used on airborne harnesses. The rib is located on the circular backshell. |
| PART DESCRIPTION | 129-2-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-29077 |
| Product Subfamily | Heat Shrink Shapes - Specialty |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib,129-2-G, PO-X, BK, 100/bag |
| Type | 129-2-G |
| UV Resistant | No |
|
|
|
| For Object Outside Diameter | 14-20 mm |
| H Recovered Dia. Max. b (imperial) | 0.47" |
| H Recovered Dia. Max. b (metric) | 12mm |
| H Supplied Dia. Min. a (imperial) | 0.86" |
| H Supplied Dia. Min. a (metric) | 22mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .25" |
| J Recovered Dia. Max. b (metric) | 6.5mm |
| J Supplied Dia. Min. a (imperial) | .86" |
| J Supplied Dia. Min. a (metric) | 22mm |
| P ± 10 % | 47mm |
| P ± 10% | 1.83" |
| S Nominal Length (imperial) | 1.09" |
| S Nominal Length (metric) | 28mm |
| T ± 20% | .04" |
| Tube Shape | Specialty |
