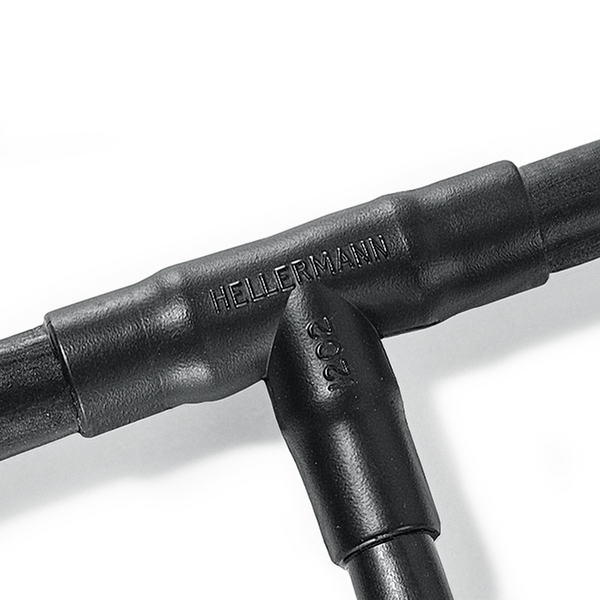

Heat Shrink Molded Shapes, 1200 Series T - VG, 1206-1-G, PO-X, BK, 1/bag
Part No. 412-06017
|
Copied
- Strain relief, sealing and mechanical protection on cable harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1200 series, VG style, provides strain relief, sealing and mechanical protection on cable harnesses. |
| Global Part Number | 1206-1-G-PO-X-BK |
| Part Number | 412-06017 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1200 Series T - VG, 1206-1-G, PO-X, BK, 1/bag |
| Type | 1206-1-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 3.72-5.88 mm |
| H Recovered Dia. Max. b (imperial) | 0.12" |
| H Recovered Dia. Max. b (metric) | 3.0mm |
| H Supplied Dia. Min. a (imperial) | .26" |
| H Supplied Dia. Min. a (metric) | 6.6mm |
| HW ± 20 % | 1mm |
| HW ± 20% | .04" |
| J Recovered Dia. Max. b (imperial) | .12" |
| J Recovered Dia. Max. b (metric) | 3mm |
| J Supplied Dia. Min. a (imperial) | .26" |
| J Supplied Dia. Min. a (metric) | 6.6mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| K Recovered Dia. Max. b (imperial) | .12" |
| K Recovered Dia. Max. b (metric) | 3mm |
| K Recovered Dia. Min. a (imperial) | .26" |
| K Recovered Dia. Min. a (metric) | 6.6mm |
| P ± 10 % | 29.7mm |
| P ± 10% | 1.16" |
| Shrink Ratio | up to 3:1 |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-756-1151, 5970-01-314-4541, 5970-12-304-4287 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
