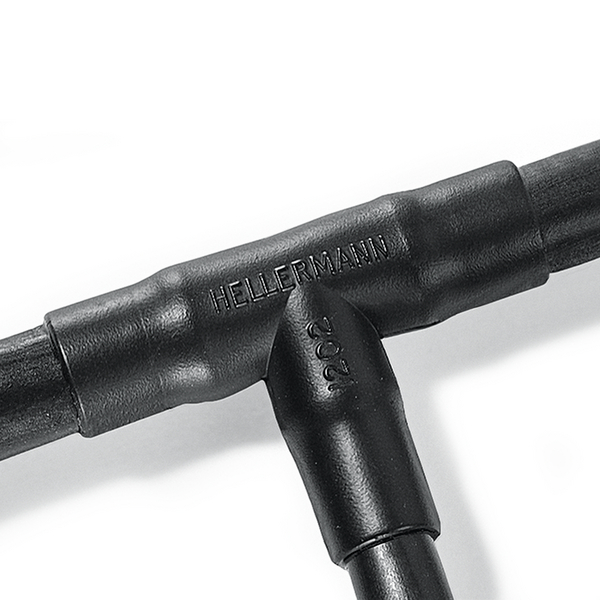

Heat Shrink Molded Shapes, 1200 Series T - VG, 1205-1-G, PO-X, BK, 1/bag
Part No. 412-05180
|
Copied
- Strain relief, sealing and mechanical protection on cable harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1200 series, VG style, provides strain relief, sealing and mechanical protection on cable harnesses. |
| Global Part Number | 1205-1-G-PO-X-BK |
| Part Number | 412-05180 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1200 Series T - VG, 1205-1-G, PO-X, BK, 1/bag |
| Type | 1205-1-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 10.7-15.8 mm |
| H Recovered Dia. Max. b (imperial) | 0.35" |
| H Recovered Dia. Max. b (metric) | 9.0mm |
| H Supplied Dia. Min. a (imperial) | 0.69" |
| H Supplied Dia. Min. a (metric) | 17.5mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .35" |
| J Recovered Dia. Max. b (metric) | 9.0mm |
| J Supplied Dia. Min. a (imperial) | .67" |
| J Supplied Dia. Min. a (metric) | 17.5mm |
| JW ± 20 % | 1.5mm |
| JW ± 20% | 0.06" |
| K Recovered Dia. Max. b (imperial) | .15" |
| K Recovered Dia. Max. b (metric) | 4.0mm |
| K Recovered Dia. Min. a (imperial) | .3" |
| K Recovered Dia. Min. a (metric) | 7.5mm |
| P ± 10 % | 51.0mm |
| P ± 10% | 1.98" |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-792-4905, 5970-12-395-5674 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
