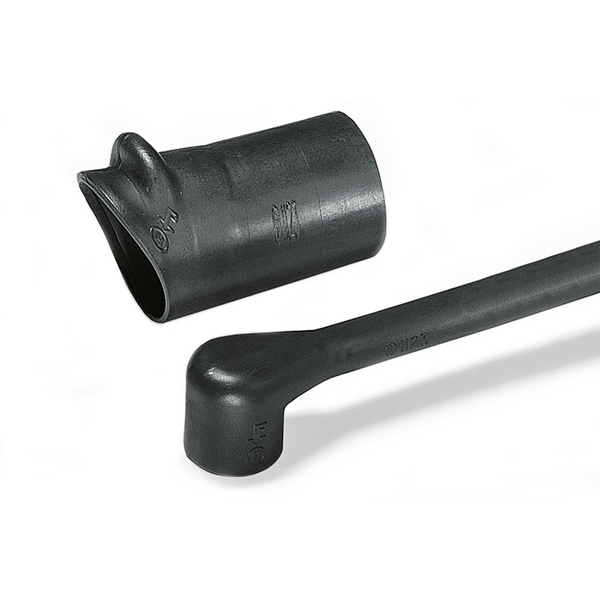

Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1129-1-G, PO-X, BK, 1/bag
Art.-No. 411-29003
|
|
Copied
- Lightweight, low profile, compact strain relief and mechanical protection
- Typically used on airborne harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, VG style/MIL style, is typically used on airborne harnesses to achieve light weight, low profile, compact strain relief and mechanical protection. |
| PART DESCRIPTION | 1129-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 411-29003 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1129-1-G, PO-X, BK, 1/bag |
| Type | 1129-1-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 61.8-67.2 mm |
| H Recovered Dia. Max. b (imperial) | 2.34" |
| H Recovered Dia. Max. b (metric) | 60mm |
| H Supplied Dia. Min. a (imperial) | 2.69" |
| H Supplied Dia. Min. a (metric) | 69mm |
| HW ± 20 % | 2.5mm |
| HW ± 20% | .1" |
| J Recovered Dia. Max. b (imperial) | .78" |
| J Recovered Dia. Max. b (metric) | 20mm |
| J Supplied Dia. Min. a (imperial) | 2.69" |
| J Supplied Dia. Min. a (metric) | 69mm |
| P ± 10 % | 137mm |
| P ± 10% | 5.34" |
| S Nominal Length (imperial) | 2.38" |
| S Nominal Length (metric) | 61mm |
| Shrink Ratio | up to 3:1 |
| T ± 20% | .08" |
| Tube Shape | Angle |
