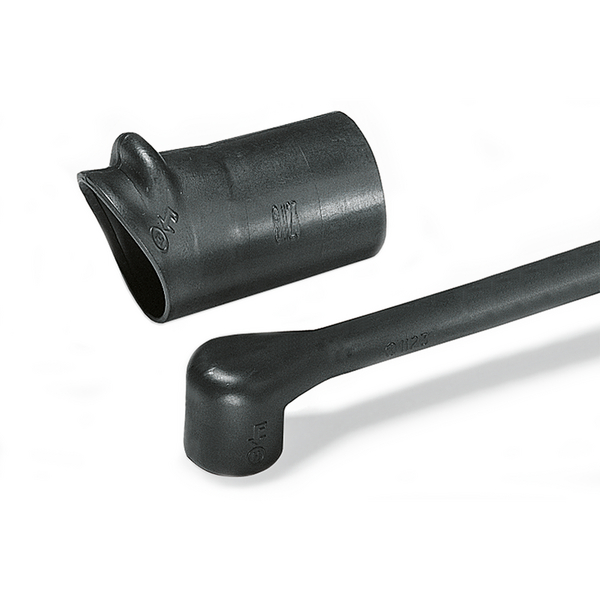

Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1126-4-G, PO-X, BK, 1/bag
Part No. 411-26008
|
Copied
- Lightweight, low profile, compact strain relief and mechanical protection
- Typically used on airborne harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, VG style/MIL style, is typically used on airborne harnesses to achieve light weight, low profile, compact strain relief and mechanical protection. |
| Global Part Number | 1126-4-G-PO-X-BK |
| Part Number | 411-26008 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1126-4-G, PO-X, BK, 1/bag |
| Type | 1126-4-G |
|
|
|
| Angle | 90 |
| For Object Outside Diameter | 35.94-41.76 mm |
| H Recovered Dia. Max. b (imperial) | 1.33" |
| H Recovered Dia. Max. b (metric) | 34.0mm |
| H Supplied Dia. Min. a (imperial) | 1.7" |
| H Supplied Dia. Min. a (metric) | 43.7mm |
| HW ± 20 % | 2mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .47" |
| J Recovered Dia. Max. b (metric) | 12mm |
| J Supplied Dia. Min. a (imperial) | 1.7" |
| J Supplied Dia. Min. a (metric) | 43.7mm |
| P ± 10 % | 213.6mm |
| P ± 10% | 8.33" |
| S Nominal Length (imperial) | 6.58" |
| S Nominal Length (metric) | 168.6mm |
| T ± 20% | .08" |
| Tube Shape | Angle |
