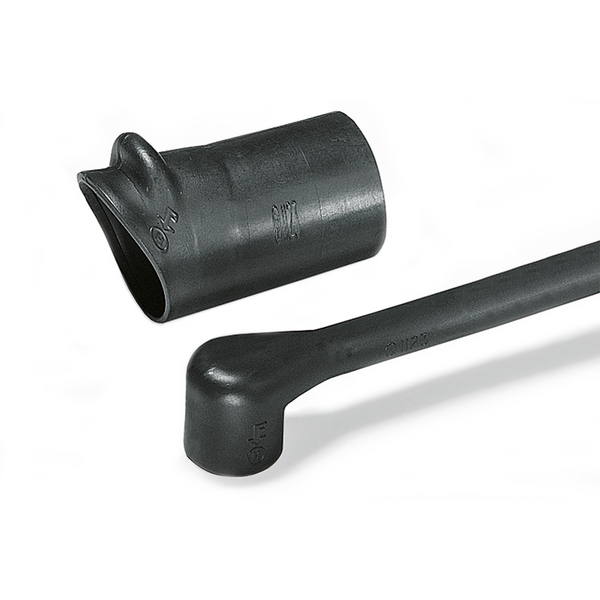

Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1125-4-G, PO-X, BK, 1/bag
Art.-No. 411-25008
|
|
Copied
- Lightweight, low profile, compact strain relief and mechanical protection
- Typically used on airborne harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, VG style/MIL style, is typically used on airborne harnesses to achieve light weight, low profile, compact strain relief and mechanical protection. |
| PART DESCRIPTION | 1125-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 411-25008 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1125-4-G, PO-X, BK, 1/bag |
| Type | 1125-4-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| For Object Outside Diameter | 35.74-31.06 mm |
| H Recovered Dia. Max. b (imperial) | 1.45" |
| H Recovered Dia. Max. b (metric) | 37.3mm |
| H Supplied Dia. Min. a (imperial) | 1.15" |
| H Supplied Dia. Min. a (metric) | 29.5mm |
| HW ± 20 % | 2mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .43" |
| J Recovered Dia. Max. b (metric) | 11mm |
| J Supplied Dia. Min. a (imperial) | 1.45" |
| J Supplied Dia. Min. a (metric) | 37.3mm |
| P ± 10 % | 185.2mm |
| P ± 10% | 7.22" |
| S Nominal Length (imperial) | 5.62" |
| S Nominal Length (metric) | 144.2mm |
| T ± 20% | .07" |
| Tube Shape | Angle |
