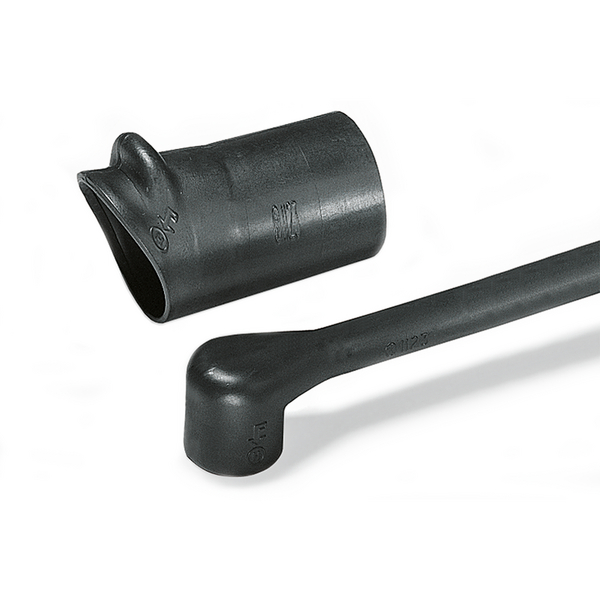

Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1124-4-G, PO-X, BK, 1/bag
Art.-No. 411-24009
|
|
Copied
- Lightweight, low profile, compact strain relief and mechanical protection
- Typically used on airborne harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, VG style/MIL style, is typically used on airborne harnesses to achieve light weight, low profile, compact strain relief and mechanical protection. |
| PART DESCRIPTION | 1124-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 411-24009 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib,1124-4-G, PO-X, BK, 1/bag |
| Type | 1124-4-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 25.12-31.78 mm |
| H Recovered Dia. Max. b (imperial) | 0.89" |
| H Recovered Dia. Max. b (metric) | 22.9mm |
| H Supplied Dia. Min. a (imperial) | 1.33" |
| H Supplied Dia. Min. a (metric) | 34mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .39" |
| J Recovered Dia. Max. b (metric) | 10mm |
| J Supplied Dia. Min. a (imperial) | 1.33" |
| J Supplied Dia. Min. a (metric) | 34mm |
| P ± 10 % | 172.2mm |
| P ± 10% | 6.72" |
| S Nominal Length (imperial) | 5.16" |
| S Nominal Length (metric) | 132.2mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
