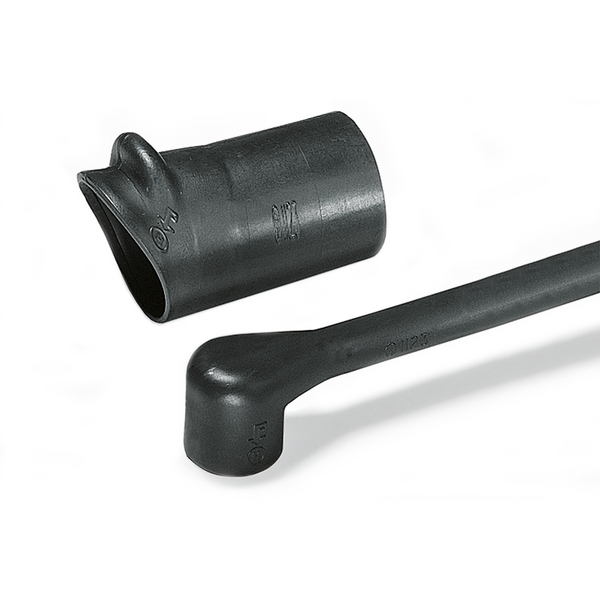

Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib, 1122-1-G, PO-X, BK, 1/bag
Part No. 411-22029
|
Copied
- Lightweight, low profile, compact strain relief and mechanical protection
- Typically used on airborne harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, VG style/MIL style, is typically used on airborne harnesses to achieve light weight, low profile, compact strain relief and mechanical protection. |
| Global Part Number | 1122-1-G-PO-X-BK |
| Part Number | 411-22029 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, Series 90-Degree Low-Profile with Rib, 1122-1-G, PO-X, BK, 1/bag |
| Type | 1122-1-G |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 17.1-23.4 mm |
| H Recovered Dia. Max. b (imperial) | 0.59" |
| H Recovered Dia. Max. b (metric) | 15.0mm |
| H Supplied Dia. Min. a (imperial) | 0.99" |
| H Supplied Dia. Min. a (metric) | 25.5mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .29" |
| J Recovered Dia. Max. b (metric) | 7.5mm |
| J Supplied Dia. Min. a (imperial) | .99" |
| J Supplied Dia. Min. a (metric) | 25.5mm |
| P ± 10 % | 79mm |
| P ± 10% | 3.08" |
| S Nominal Length (imperial) | 2.11" |
| S Nominal Length (metric) | 54mm |
| Shrink Ratio | up to 3:1 |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-12-305-9871 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
