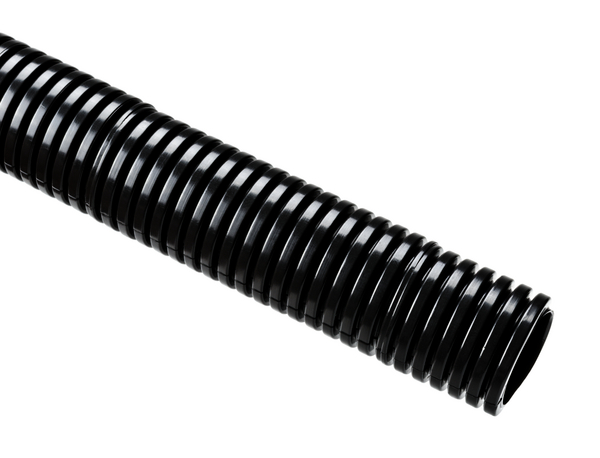

HelaGuard® Non-Metallic Conduit, Std. Weight, 1.00" Dia, Nylon PA6 Slit, Black, 50 ft/Std. Reel
Art.-No. 166-90273
|
|
Copied
This product is not available anymore.
- Material is easy to use and cut; reduces installation time and labor costs.
- Flexible, abrasion resistant and durable for a variety of applications.
- Good impact strength; recovers quickly if crushed.
- UV resistant; suitable for use in outdoor applications.
- Offered in fine or course corrugated pitch.
- Offered with or without slit; slit options offer easy access during installation and maintenance.
Show more
Show less
| Application | UV resistant Polyamide 6 (PA6) material is suitable for use in outdoor applications. |
| Color | Black (BK) |
| Description | A standard weight corrugated conduit made of PA6 nylon that offers flexible abrasion protection for wire and cable bundles. Easy to cut and use, the material is highly resistant to solvents and oils. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt. |
| PART DESCRIPTION | HG-SWSL1000-PA6-BK |
| Packaging Type | reel |
| Part No. | 166-90273 |
| Short Description | HelaGuard® Non-Metallic Conduit, Std. Weight, 1.00" Dia, Nylon PA6 Slit, Black, 50 ft/Std. Reel |
| Type | HG-SWSL1000 |
| UV Resistant | No |
| Inner Diameter (imperial) | 1.11" |
| Inner Diameter (metric) | 28.1mm |
| Inside Bend Radius (imperial) | 2.36" |
| Inside Bend Radius (metric) | 60mm |
| Length (imperial) | 50.0ft |
| Length (metric) | 15.2m |
| Nominal Diameter (imperial) | 1" |
| Nominal Diameter (metric) | 34mm |
| Outside Diameter (imperial) | 1.36" |
| Outside Diameter (metric) | 34.5mm |
| Pitch Type | C (Coarse) |
| Trade Size | 1 " |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Material | PA6 |
| Material | Polyamide 6 (PA6) |
| Operating Temperature | -40°F to +248°F (-40°C to +120°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
