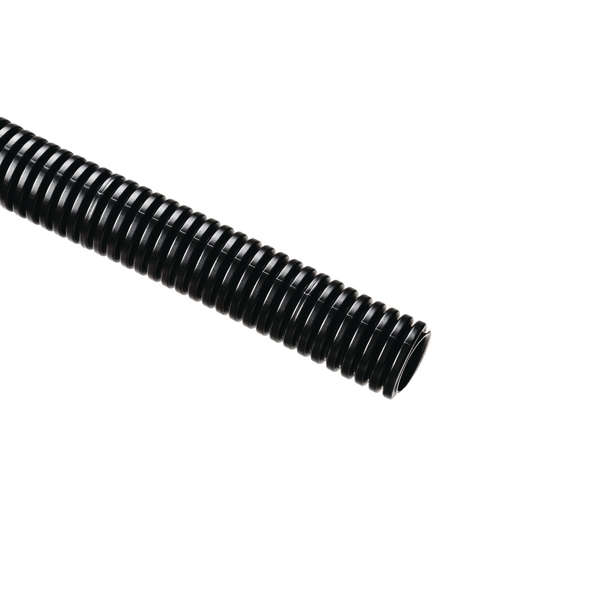

HelaGuard® Non-Metallic Conduit, Std. Weight, 0.31" Dia, Nylon PA12, Black, 100 ft/Std. Reel
Art.-No. 166-90282
| HG-HI0310-PA12-BK
|
Copied
This product is not available anymore.
- Very high impact strength; recovers completely if crushed and provides excellent fatigue life.
- Highly UV resistant; suitable for use in outdoor applications.
- Offered in fine or course corrugated pitch.
- Offered with or without slit; slit options offer easy access during installation and maintenance.
| Brand Family | HelaGuard® |
| Color | Black (BK) |
| Description | A standard weight corrugated conduit made of PA12 nylon that offers superior impact resistance, making it ideal for protecting wire and cable bundles in conditions with continual movement or bending. This material is highly resistant to UV light, solvents and oils. Combine with HelaGuard Non-Metallic Fittings to achieve IP66 or greater protection against water, wind and dirt. |
| PART DESCRIPTION | HG-HI0310-PA12-BK |
| Packaging Type | reel |
| Part No. | 166-90282 |
| Short Desc. | HelaGuard® Non-Metallic Conduit, Std. Weight, 0.31" Dia, Nylon PA12, Black, 100 ft/Std. Reel |
| Type | HG-HI0310 |
| CSA Certified | No |
| Flammability | EN IEC 61386 |
| Halogen Free | Yes |
| Material | PA12 |
| Material | Polyamide 12 (PA12) |
| Operating Temperature | -58°F to +230°F (-50°C to +110°C) |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E229161 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
