1 x 4" FlagTag Label, Thermal Transfer, 2400 Labels/roll
Art.-No. 596-97003
|
|
Copied
- Leaves no exposed adhesive, so it won't adhere to adjacent labels.
- Notched score line for error-free, single-finger folding.
- After installation, information can be read from both sides of the marker, making it easy to identify specific cables.
- Self-locking tail permanently bonds the label to the cable.
- Available in thermal transfer or laser printable formats for expanded printing options.
Show more
Show less
| Color | White gloss (GSWH) |
| Description | The HellermannTyton FlagTag is an innovative flag-style solution for labeling various conductor sizes. Print from any compatible HellermannTyton thermal transfer printer. Applications include high-density cable groups, where it’s not possible to move the wires to view critical identifiers. FlagTags also allow for the printing of barcodes, graphics and multiple lines of text without losing direct visibility of the printed data. Whether the application is in data centers, wire harness assemblies or in hard-to-reach areas, FlagTags are an ideal option for organizing and marking wire and cable or even bundles of cables when required. |
| PART DESCRIPTION | FTTT-PES-WH |
| Packaging Type | pack |
| Part No. | 596-97003 |
| Print Method | thermal transfer |
| Product Subfamily | Flag Labels |
| Product family | Labels and Tags |
| Short Description | 1 x 4" FlagTag Label, Thermal Transfer, 2400 Labels/roll |
| Type | FTTT |
| UV Resistant | No |

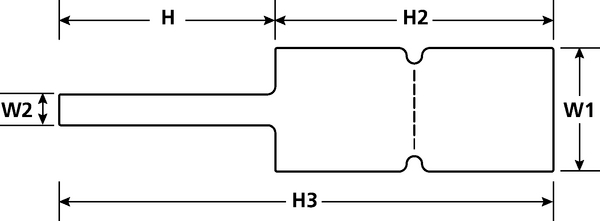

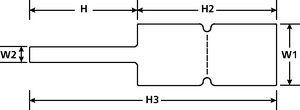

| Height (imperial) | 1.75" |
| Height (metric) | 44.5mm |
| Height 2 (imperial) | 2.25" |
| Height 2 (metric) | 57.15mm |
| Height 3 (imperial) | 4.0" |
| Height 3 (metric) | 101.6mm |
| Horizontal Repeat (imperial) | .125" |
| Horizontal Repeat (metric) | 3.17mm |
| Liner Width (imperial) | 4.0" |
| Liner Width (metric) | 101.6mm |
| Printable Area Height (imperial) | 1.0" |
| Printable Area Height (metric) | 25.4mm |
| Printable Area Width (imperial) | 1.12" |
| Printable Area Width (metric) | 28.44mm |
| Thickness (imperial) | .007" |
| Thickness (metric) | 64.0µm |
| Vertical Repeat (imperial) | 1.125" |
| Vertical Repeat (metric) | 28.57mm |
| Width (imperial) | 1.0" |
| Width (metric) | 25.4mm |
| Width 2 (imperial) | 0.25" |
| Width 2 (metric) | 6.35mm |
| Wire Size Max. (imperial) | .375" |
| Wire Size Range (AWG) | 2/0 |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Material | PES |
| Material | Polyester (PES) |
| Max. Print Width | 28.4mm |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
