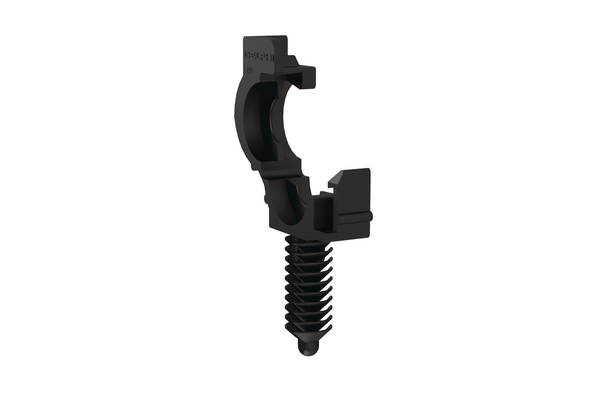

Conduit Clamps, Size 6, Mounting Hole 6.35 mm, Fir Tree, PP, Black, 2400/pkg
Part No. 151-02672
|
Copied
This product is not available anymore.
- Can be easily assembled to convoluted tubing and reliably remain in position
- Internal rib prevents movement or rattling
- Multiple configurations to mount to a variety of surfaces
- Releaseable to allow for maintenance
| Color | Black (BK) |
| Description | The Convoluted Tubing Clamp provides a quick method for securing and routing convoluted tubing. The clamp has an internal rib that prevents movement of the tubing and rattling. Convoluted tubing clamps are available in various tubing diameters. Choose from arrowhead, fir tree, bundling clip, bracket and dual clamp configurations. |
| Key product features | for convoluted tubes or with rib |
| PART DESCRIPTION | CDC6FT6.35-PP-BK |
| Packaging Type | carton |
| Part No. | 151-02672 |
| Product Subfamily | CDC-Series |
| Product family | Omega Clips |
| Short Description | Conduit Clamps, Size 6, Mounting Hole 6.35 mm, Fir Tree, PP, Black, 2400/pkg |
| Type | CDC6FT6.35 |
| UV Resistant | No |
| Bundle Diameter Max. (imperial) | 0.24" |
| Bundle Diameter Max. (metric) | 6.0mm |
| Bundle Diameter Min. (imperial) | 0" |
| Diameter (imperial) | 0.3" |
| Diameter (metric) | 7.7mm |
| Diameter 2 (imperial) | 0.51" |
| Diameter 2 (metric) | 13.0mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 2.0" |
| Height (metric) | 50.9mm |
| Length (imperial) | 1.24" |
| Length (metric) | 31.5mm |
| Mounting Hole Diameter (imperial) | 0.25 " |
| Mounting Hole Diameter (metric) | 6.35 mm |
| Mounting Hole Shape | Round |
| Width (imperial) | 0.3" |
| Width (metric) | 7.6mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | No |
| Material | PP |
| Material | Polypropylene (PP) |
| Operating Temperature | -40°F to +239°F (-40°C to +115°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
