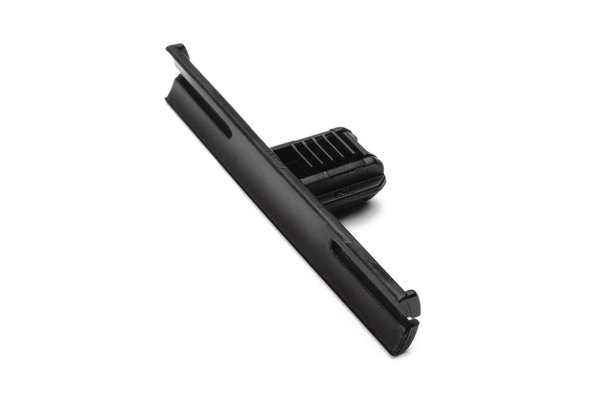

Bundling Clip w/Oval Fir Tree, 2.2" Long, 0.02 - 0.24" Panel Thickness, PA66HIRHS, Black, 5000/box
Art.-No. 151-00029
|
|
Copied
This product is not available anymore.
- Clips offer a easy securing option when cable ties can't be used.
- Clips can be attached to the panel prior to installing the pipe or hose.
- The different mounting orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Color | Black (BK) |
| Description | HellermannTyton pipe and hose clips offer simple and secure installation of pipes or hoses to panels. Simply push the pipe into the clip for a firm and secure fixing. These parts can also be connected together offering a greater choice of installation options. |
| Global Part Number | TCOP70x120-PA66HIRHS-BK |
| Packaging Type | bag |
| Part No. | 151-00029 |
| Product Subfamily | Fir Trees for Oval Holes with Bundling Clips |
| Short Description | Bundling Clip w/Oval Fir Tree, 2.2" Long, 0.02 - 0.24" Panel Thickness, PA66HIRHS, Black, 5000/box |
| Technical Description | Please quote and sell 151-02284 |
| Type | TCOP70x120 |
| Fixation Method | Fir Tree for oval holes |
| Length (imperial) | 2.2" |
| Length (metric) | 55.0mm |
| Mounting Hole Diameter (imperial) | 0.28 - 0.47 " |
| Mounting Hole Diameter (metric) | 7.0 x 12.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.47" |
| Mounting Hole Diameter Min. (imperial) | 0.28" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.24" |
| Panel Thickness (metric) | 0.6 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.60mm |
| Tape Bar Length (imperial) | 2.17" |
| Tape Bar Length (metric) | 55.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
