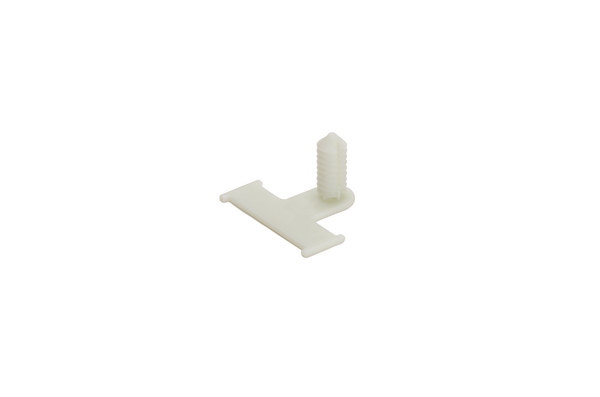

Standoff Bundling Clip, 1.4" Long, 0.02 - 0.23 " Panel Thickness, PA66HIRHS, Natural, 5000/box
Art.-No. 151-01154
|
|
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
| Application | Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing. |
| Color | Natural (NA) |
| Description | Standoff bundling clips provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing. |
| Global Part Number | SOC9FT6XLG-PA66HIRHS-NA |
| Packaging Type | pack |
| Part No. | 151-01154 |
| Product Subfamily | Bundling Clips |
| Product family | Self-Affixing Clips |
| Short Description | Standoff Bundling Clip, 1.4" Long, 0.02 - 0.23 " Panel Thickness, PA66HIRHS, Natural, 5000/box |
| Type | SOC9FT6XLG |
| UV Resistant | No |
| Fixation Method | Fir Tree |
| Height (imperial) | 0.47" |
| Height (metric) | 11.94mm |
| Hole Depth Max. (imperial) | 0.23" |
| Hole Depth Max. (metric) | 5.84mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.5mm |
| Length (imperial) | 1.4" |
| Length (metric) | 35.5mm |
| Length 2 (imperial) | 0.62" |
| Length 2 (metric) | 15.75mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Round |
| Offset Length (imperial) | 0.62" |
| Offset Length (metric) | 15.75mm |
| Panel Thickness (imperial) | 0.02 - 0.23" |
| Panel Thickness (metric) | 0.5 - 5.84mm |
| Panel Thickness Max. (Imperial) | 0.23" |
| Panel Thickness Max. (Metric) | 5.84mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.5mm |
| Tape Bar Length (imperial) | 1.40" |
| Tape Bar Length (metric) | 35.5mm |
| Width (imperial) | 1.1" |
| Width (metric) | 27.95mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
