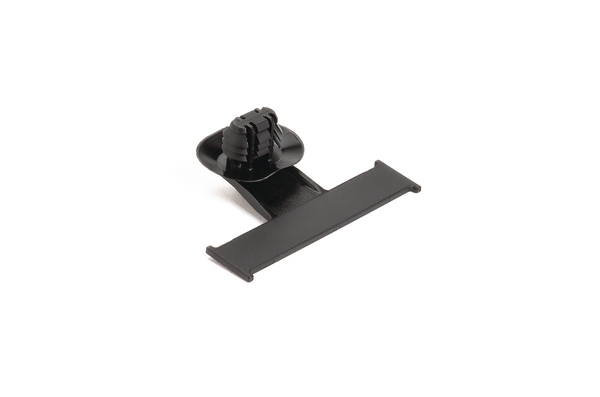

Standoff Bundling Clip, 1.97" Long, 0.02 - 0.16" Panel Thickness, PA66HIRHS, Black, 1000/pkg
Part No. 151-03381
|
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
| Color | Black (BK) |
| Description | Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions. |
| Global Part Number | SOC13FTOVAL-PA66HIRHS-BK |
| Part Number | 151-03381 |
| Product Family | Self-Affixing Clips |
| Product Subfamily | Bundling Clips |
| Short Description | Standoff Bundling Clip, 1.97" Long, 0.02 - 0.16" Panel Thickness, PA66HIRHS, Black, 1000/pkg |
| Type | SOC13FTOVAL |
| Bundle Diameter Max. (imperial) | 0" |
| Bundle Diameter Min. (imperial) | 0" |
| Fixation Method | Fir Tree for oval holes |
| Height (metric) | 15.1mm |
| Hole Depth Max. (imperial) | 0.16" |
| Hole Depth Max. (metric) | 4.0mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Length (imperial) | 1.97" |
| Length (metric) | 50.0mm |
| Length 2 (imperial) | 0.79" |
| Length 2 (metric) | 20.0mm |
| Length 3 (imperial) | 0.37" |
| Length 3 (metric) | 9.5mm |
| Mounting Hole Diameter (imperial) | 0.25 x 0.5 " |
| Mounting Hole Diameter (metric) | 6.5 x 12.5 mm |
| Mounting Hole Diameter Max. (imperial) | 0.50" |
| Mounting Hole Diameter Min. (imperial) | 0.25" |
| Mounting Hole Shape | Oval |
| Offset Length (imperial) | 0.79" |
| Offset Length (metric) | 20.0mm |
| Panel Thickness (imperial) | 0.02 - 0.16" |
| Panel Thickness (metric) | 0.6 - 4.0mm |
| Panel Thickness Max. (Imperial) | 0.16" |
| Panel Thickness Max. (Metric) | 4.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Tape Bar Length (imperial) | 1.97" |
| Tape Bar Length (metric) | 50.0mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| ROHS Compliant | No |
| UV Resistant | Yes |
