Dual Clip Stud Mount to MOC Clips Rotated, 26mm Clip, 5mm/6mm Stud Mount, PA66HIRHSUV, BK, 2000/ctn
Art.-No. 156-02841
|
|
Copied

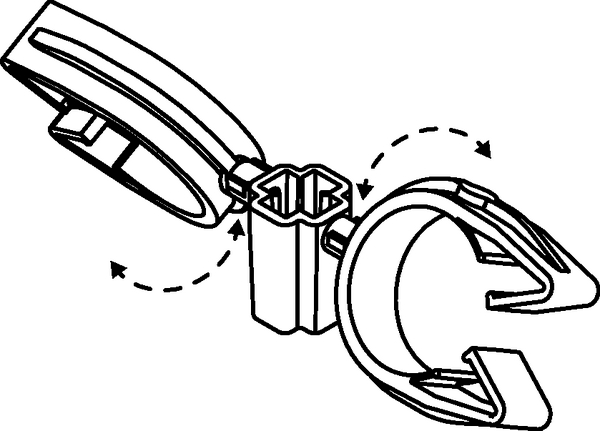

- Multi-option dual clip stud mount secures two bundles running alongside a bolt or stud.
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
| Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
| Color | Black (BK) |
| Description | The dual MOC with stud mount features two of HellermannTyton's unique retention clips with a best-in-class stud mount to secure to a 5mm or 6mm stud or bolt. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point. |
| PART DESCRIPTION | SMF2MOC26M180X2-PA66HIRHSUV-BK |
| Packaging Type | bag |
| Part No. | 156-02841 |
| Short Description | Dual Clip Stud Mount to MOC Clips Rotated, 26mm Clip, 5mm/6mm Stud Mount, PA66HIRHSUV, BK, 2000/ctn |
| Type | SMF2MOC26M180X2 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 1.14" |
| Bundle Diameter Max. (metric) | 29.0mm |
| Bundle Diameter Min. (imperial) | 0.9" |
| Bundle Diameter Min. (metric) | 23.0mm |
| Depth (imperial) | 0.61" |
| Depth (metric) | 15.5mm |
| Fixation Method | Stud Mount |
| Height (imperial) | 1.0" |
| Height (metric) | 25.3mm |
| Height 2 (imperial) | 0.70" |
| Height 2 (metric) | 17.8mm |
| Length (imperial) | 4.26" |
| Length (metric) | 108.2mm |
| Length 2 (imperial) | 2.37" |
| Length 2 (metric) | 60.2mm |
| Nominal Bundle Diameter (imperial) | 1.02 " |
| Nominal Bundle Diameter (metric) | 26.0 mm |
| Nominal Bundle Diameter 2 (imperial) | 1.02 " |
| Nominal Bundle Diameter 2 (metric) | 26.0 mm |
| Stud Diameter (metric) | 5.0 mm, 6.0 mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Prop65 Warning | No |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
