Fir Tree C-Clip, 0.24 - 0.30" Bundle Dia, 0.03 - 0.25" Panel, 0.26" Mount Hole, PA66HIRHSUV, Black, 100/pkg
Art.-No. 151-00927
|
|
Copied
- Pre-drilled holes allows for easy installation by hand.
- Cable can be removed and reinstalled without removing the clip, providing multiple use options.
- Made of PA66HIRHSUV material for withstanding extreme conditions.
| Color | Black (BK) |
| Description | The C Clip with fir tree mount is ideal for panels with pre-drilled holes. Easy installation by hand eliminates the need for any tools. Once installed, the cable simply snaps into the clip. The cable can be removed and reinstalled without removing the clip. Made from PA66HIRHSUV material, the clip offers increased flexibility along with heat resistance and UV stability. |
| Global Part Number | SC6.6-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-00927 |
| Product Subfamily | Bundling Clips |
| Product family | Self-Affixing Clips |
| Short Description | Fir Tree C-Clip, 0.24 - 0.30" Bundle Dia, 0.03 - 0.25" Panel, 0.26" Mount Hole, PA66HIRHSUV, Black, 100/pkg |
| Type | SC6.6 |
| UV Resistant | Yes |
| Attaches to Diameter (metric) | 6.0 - 7.6 |
| Bundle Diameter Max. (imperial) | 0.3" |
| Bundle Diameter Max. (metric) | 7.6mm |
| Bundle Diameter Min. (imperial) | 0.24" |
| Bundle Diameter Min. (metric) | 6.0mm |
| Disc Diameter (imperial) | 0.73" |
| Disc Diameter (metric) | 18.55mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 1.32" |
| Height (metric) | 33.43mm |
| Mounting Hole Diameter (imperial) | 0.26 " |
| Mounting Hole Diameter (metric) | 6.6 mm |
| Panel Thickness (imperial) | 0.03 - 0.25" |
| Panel Thickness (metric) | 0.7 - 6.35mm |
| Panel Thickness Max. (Imperial) | 0.25" |
| Panel Thickness Max. (Metric) | 6.35mm |
| Panel Thickness Min. (Imperial) | 0.03" |
| Panel Thickness Min. (Metric) | 0.7mm |

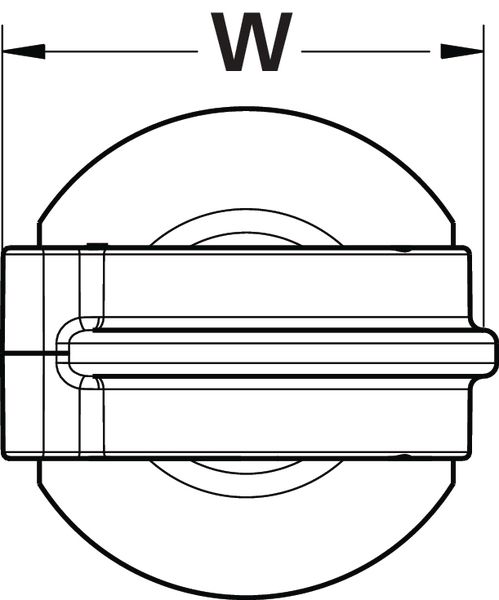

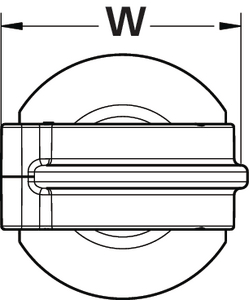

| Width (imperial) | 0.72" |
| Width (metric) | 18.26mm |
| Width 2 (imperial) | 0.32" |
| Width 2 (metric) | 8.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
