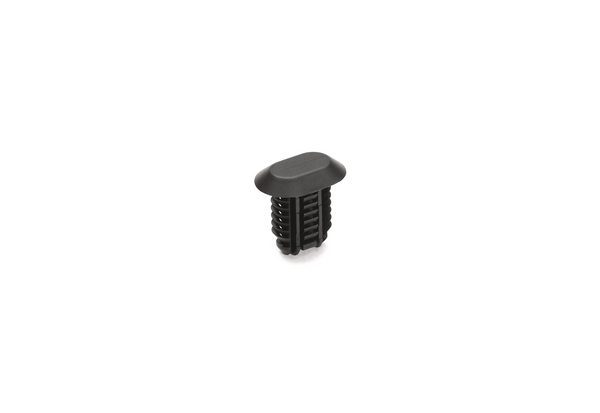

Push Pin, Mounting Hole Dia. 6.5x12.5mm, PA66HIRHS, Black, 3000/carton
Art.-No. 133-02029
|
|
Copied
- Easy assembly without the need of a tool.
- Disc covers mounting hole and minimizes ingress of dust, dirt and water.
- Standard geometry for example fir tree or arrowhead.
| Application | Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons. |
| Color | Black (BK) |
| Description | Developed especially for the automotive industry in applications including trunks, doors, wheel housings and dash panels. |
| Global Part Number | PLUGFTOVALXL-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 133-02029 |
| Product Subfamily | Push Pins with Fir Tree |
| Product family | Self-Affixing Push Pins |
| Short Description | Push Pin, Mounting Hole Dia. 6.5x12.5mm, PA66HIRHS, Black, 3000/carton |
| Type | PLUGFTOVALXL |
| UV Resistant | Yes |
| Fixation Method | Blind Plug |
| Height (imperial) | 0.78" |
| Height (metric) | 19.7mm |
| Height 2 (imperial) | 0.66" |
| Height 2 (metric) | 16.85mm |
| Hole Depth Max. (imperial) | 0.31" |
| Hole Depth Max. (metric) | 8.0mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Length (imperial) | 0.77" |
| Length (metric) | 19.6mm |
| Mounting Hole Diameter (imperial) | 0.24 x 0.48 ", 0.25 x 0.50 ", 0.27 x 0.47 ", 0.25 x 0.50 " |
| Mounting Hole Diameter (metric) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.51" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.31" |
| Panel Thickness (metric) | 0.6 - 8.0mm |
| Panel Thickness Max. (Imperial) | 0.31" |
| Panel Thickness Max. (Metric) | 8.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.54" |
| Width (metric) | 13.62mm |
| CE Certification | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
