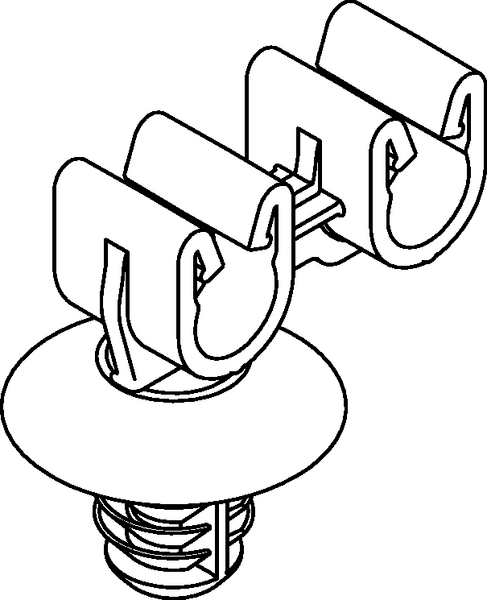

Tube and Pipe Clip with 8mm Fir Tree, 2x 6.5-7.0mm Diameter, PA66HIRHS, Black, 3000/ctn
Part No. 133-04043
|
Copied
- Secures two routings together while keeping them separated, to prevent chafing or heat transfer.
- Inverted retaining legs and narrow opening prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in an 8mm hole.
| Brand Family | PC-Series |
| Color | Black (BK) |
| Description | This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses. |
| Global Part Number | PC6.5x2FT8.0-PA66HIRHS-BK |
| Part Number | 133-04043 |
| Product Family | Self-Affixing Clips |
| Product Subfamily | Bundling Clips |
| Short Description | Tube and Pipe Clip with 8mm Fir Tree, 2x 6.5-7.0mm Diameter, PA66HIRHS, Black, 3000/ctn |
| Type | PC6.5x2FT8.0 |
| Bundle Diameter Max. (imperial) | 0.28" |
| Bundle Diameter Max. (metric) | 7.0mm |
| Bundle Diameter Min. (imperial) | 0.26" |
| Bundle Diameter Min. (metric) | 6.5mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 1.06" |
| Height (metric) | 26.9mm |
| Length (imperial) | 1.17" |
| Length (metric) | 29.6mm |
| Mounting Hole Diameter (imperial) | 0.31 " |
| Mounting Hole Diameter (metric) | 8.0 mm |
| Panel Thickness (imperial) | 0.02 - 0.20" |
| Panel Thickness (metric) | 0.6 - 5.5mm |
| Panel Thickness Max. (Imperial) | 0.22" |
| Panel Thickness Max. (Metric) | 5.5mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.39" |
| Width (metric) | 10.0mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
