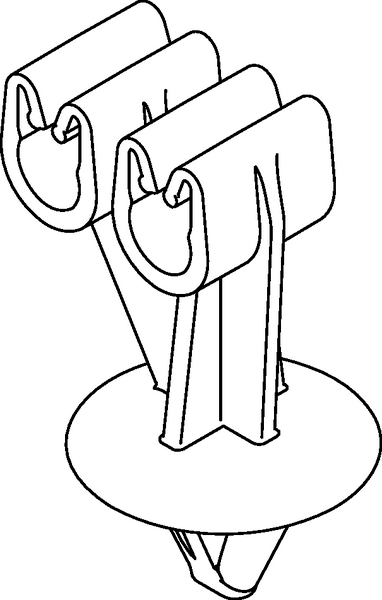

Tube and Pipe Clip with 6.5mm Arrowhead, 1.2-1.6mm Panel Thickness, PA66HIRHS, Black, 5000/ctn
Art.-No. 133-04044
|
|
Copied
- Secures two routings together while keeping them separated, to prevent chafing or heat transfer
- Inverted retaining legs and narrow opening prevent inadvertent disengagement
- Controlled flex and angled entry promote easy installation
- Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in a 65 mm hole
- For use with routings of the following size: 2x 47-51mm
Show more
Show less
| Application | Pipe clips offering a simple and time saving fixing methode for hoses and pipes even when a cable tie can't be used. |
| Color | Black (BK) |
| Description | This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses. |
| PART DESCRIPTION | PC5X2SO-PA66HIRHS-BK |
| Packaging Type | pack |
| Part No. | 133-04044 |
| Product Subfamily | Bundling Clips |
| Product family | Self-Affixing Clips |
| Short Description | Tube and Pipe Clip with 6.5mm Arrowhead, 1.2-1.6mm Panel Thickness, PA66HIRHS, Black, 5000/ctn |
| Type | PC5X2SO |
| UV Resistant | No |
| Attaches to Diameter (metric) | 4.7 - 5.1 |
| Fixation Method | Arrowhead |
| Height (imperial) | 1.14" |
| Height (metric) | 28.9mm |
| Length (imperial) | 0.97" |
| Length (metric) | 23.74mm |
| Mounting Hole Diameter (imperial) | 0.24 x 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Panel Thickness (imperial) | 0.02 - 0.04" |
| Panel Thickness (metric) | 0.6 - 1.0mm |
| Panel Thickness Max. (Imperial) | 0.04" |
| Panel Thickness Max. (Metric) | 1.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.88" |
| Width (metric) | 22.35mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
