Heavy Duty Reverse Barb Metal Edge Clip, 1–3mm Panel Thickness, 5–7.6mm Cable Range, SS304, 100/bag
Part No. 151-04064
|
Copied
- Reversed orientation ensures PV cables are completely enclosed inside panel, reducing exposure to wind, snow and ice that can dislodge cables from mounting clips.
- Clip can be preloaded onto cable so it can be blind-mounted under panel.
- Larger thumb pad is more comfortable for installers, resulting in less strain and faster installations.
- 1 - 3 mm panel thickness range fits a wide range of panels.
- Double-compression design accommodates various wire and cable sizes.
Show more
Show less
| Application | Integrated design allows for easy insertion by hand. Edge clip features rounded edges that protect the cable insulation from damage. Double-compression design that accommodates up to two cables and various sizes (4-6 mm².) High extraction force for withstanding extreme conditions. Made from SS304 stainless steel. |
| Color | Metal (ML) |

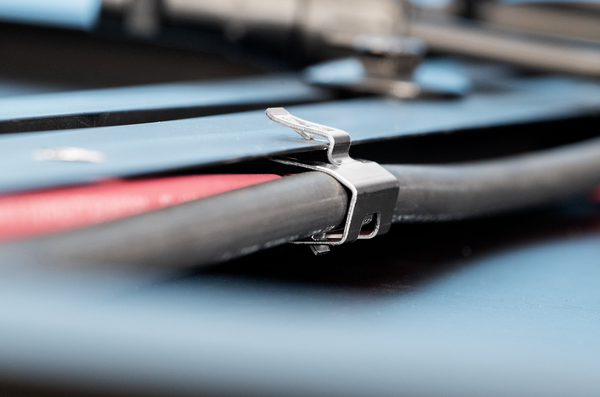

| Description | HellermannTyton's Reverse Barb Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, this Solar Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables remain securely fastened to a panel. The clip is similar in design to the MSC2 clip, except orientation is at 180 degrees, which positions the PV cables inside the panel frame. |
| PART DESCRIPTION | MSC2RB-SS304-ML |
| Packaging Type | pack |
| Part No. | 151-04064 |
| Product Subfamily | Solar Edge Clips |
| Product family | Edge Clips |
| Short Description | Heavy Duty Reverse Barb Metal Edge Clip, 1–3mm Panel Thickness, 5–7.6mm Cable Range, SS304, 100/bag |
| Type | MSC2RB |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.30" |
| Bundle Diameter Max. (metric) | 7.59mm |
| Bundle Diameter Min. (imperial) | 0.20" |
| Bundle Diameter Min. (metric) | 5.0mm |
| Cable Diameter Max. (Imperial) | 0.30" |
| Cable Diameter Max. (Metric) | 7.6mm |
| Cable Diameter Min. (imperial) | 0.20" |
| Cable Diameter Min. (metric) | 5.0mm |
| Height (imperial) | 0.57" |
| Height (metric) | 14.4mm |
| Length (imperial) | 0.95" |
| Length (metric) | 24.1mm |
| Panel Thickness (imperial) | 0.04 - 0.12" |
| Panel Thickness (metric) | 1.0 - 3.0mm |
| Panel Thickness Max. (Imperial) | 0.12" |
| Panel Thickness Max. (Metric) | 3.0mm |
| Panel Thickness Min. (Imperial) | 0.04" |
| Panel Thickness Min. (Metric) | 1.0mm |
| Width (imperial) | 0.75" |
| Width (metric) | 19.1mm |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| Material | SS304 |
| Material | Stainless Steel (SS304) |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
