Low Profile Metal Edge Clip, 1.2 - 1.7mm Panel Thickness, 4.09 - 7.01mm Cable Range, SS304, 5000/ctn
Part No. 151-03433
|
Copied
- Integrated design allows for easy insertion by hand.
- 1.2 - 1.7 mm panel thickness range allows for multiple applications.
- Double-compression design that accommodates various sizes of wire and cable.
- Presents a high extraction force for withstanding extreme conditions.
| Application | Integrated design allows for easy insertion by hand. Edge clip features rounded edges that protect the cable insulation from damage. Double-compression design that accommodates up to two cables and various sizes (4-6 mm².) High extraction force for withstanding extreme conditions. Made from SS304 stainless steel. |
| Color | Metal (ML) |
| Description | Designed for more confined areas, HellermannTyton's Low Profile Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver. |
| PART DESCRIPTION | MSC2LP1.4-SS304-ML |
| Packaging Type | pack |
| Part No. | 151-03433 |
| Product Subfamily | MSC2-Series |
| Product family | Edge Clips |
| Short Description | Low Profile Metal Edge Clip, 1.2 - 1.7mm Panel Thickness, 4.09 - 7.01mm Cable Range, SS304, 5000/ctn |
| Type | MSC2LP1.4 |
| UV Resistant | Yes |
| Attaches to Diameter (metric) | 4.1 - 7.0 |
| Bundle Diameter Max. (imperial) | 0.276" |
| Bundle Diameter Max. (metric) | 7.0mm |
| Bundle Diameter Min. (imperial) | 0.161" |
| Bundle Diameter Min. (metric) | 4.1mm |
| Cable Diameter Max. (Imperial) | 0.276" |
| Cable Diameter Max. (Metric) | 7.0mm |
| Cable Diameter Min. (imperial) | 0.161" |
| Cable Diameter Min. (metric) | 4.1mm |
| Depth (imperial) | 0.649" |
| Depth (metric) | 16.48mm |
| Depth 2 (imperial) | 0.473" |
| Depth 2 (metric) | 12.02mm |
| Fixation Method | Edge Clip |
| Hole Depth Max. (imperial) | 0.07" |
| Hole Depth Max. (metric) | 1.7mm |
| Hole Depth Min. (imperial) | 0.05" |
| Hole Depth Min. (metric) | 1.2mm |

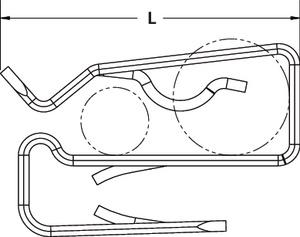

| Length (imperial) | 0.70" |
| Length (metric) | 17.9mm |
| Panel Thickness (imperial) | 0.05 - 0.07" |
| Panel Thickness (metric) | 1.2 - 1.7mm |
| Panel Thickness Max. (Imperial) | 0.07" |
| Panel Thickness Max. (Metric) | 1.7mm |
| Panel Thickness Min. (Imperial) | 0.05" |
| Panel Thickness Min. (Metric) | 1.2mm |
| Width (imperial) | 0.375" |
| Width (metric) | 9.53mm |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| Material | SS304 |
| Material | Stainless Steel (SS304) |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
