Low Profile Metal Edge Clip, 1.5 - 2.0mm Panel Thickness, 4.1 - 7mm Cable Range, SS304, 5000/box
Part No. 151-03910
|
Copied
- Integrated design allows for easy insertion by hand.
- 1.5 - 2.0 mm panel thickness range allows for multiple applications.
- Double-compression design can accommodate up to 2 wires or cables of varying sizes.
- Presents a high extraction force for withstanding extreme conditions.
| Color | Metal (ML) |
| Description | Designed for more confined areas, HellermannTyton's Low Profile Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver. |
| PART DESCRIPTION | MSC2LP-SS304-ML |
| Packaging Type | pack |
| Part No. | 151-03910 |
| Product Subfamily | Edge Clips |
| Product family | Self-Affixing Clips |
| Short Description | Low Profile Metal Edge Clip, 1.5 - 2.0mm Panel Thickness, 4.1 - 7mm Cable Range, SS304, 5000/box |
| Type | MSC2LP |
| UV Resistant | Yes |
| Attaches to Diameter (imperial) | 0.16 - 0.27 " |
| Attaches to Diameter (metric) | 4.1 - 7.0 |
| Bundle Diameter Max. (imperial) | 0.27" |
| Bundle Diameter Max. (metric) | 7.0mm |
| Bundle Diameter Min. (imperial) | 0.16" |
| Bundle Diameter Min. (metric) | 4.1mm |
| Cable Diameter Max. (Imperial) | 0.276" |
| Cable Diameter Max. (Metric) | 7.0mm |
| Cable Diameter Min. (imperial) | 0.161" |
| Cable Diameter Min. (metric) | 4.1mm |
| Hole Depth Max. (imperial) | 0.08" |
| Hole Depth Max. (metric) | 2.0mm |
| Hole Depth Min. (imperial) | 0.06" |
| Hole Depth Min. (metric) | 1.5mm |

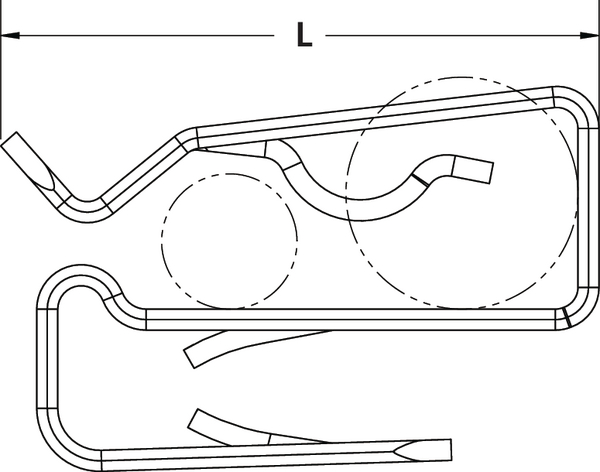

| Length (imperial) | 0.67" |
| Length (metric) | 17.0mm |
| Panel Thickness (imperial) | 0.06 - 0.08" |
| Panel Thickness (metric) | 1.5 - 2.0mm |
| Panel Thickness Max. (Imperial) | 0.08" |
| Panel Thickness Max. (Metric) | 2.0mm |
| Panel Thickness Min. (Imperial) | 0.06" |
| Panel Thickness Min. (Metric) | 1.5mm |
| Width (imperial) | 0.375" |
| Width (metric) | 9.50mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| Material | SS304 |
| Material | Stainless Steel (SS304) |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E64139 [cRUus], E64139 [cULus] |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
