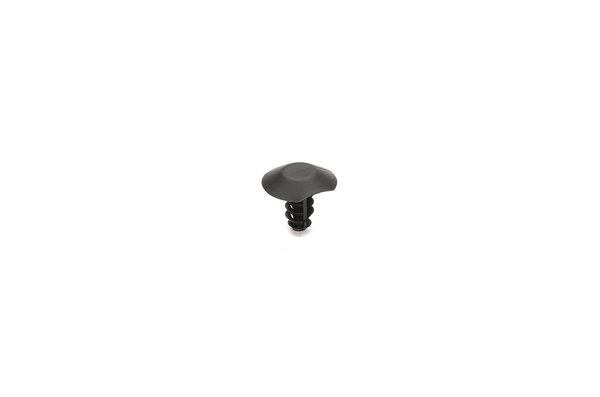

Push Pin, Mounting Hole Dia. M6, PA66HIRHSUV, Black, 5000/carton
Art.-No. 151-01304
|
|
Copied
- Easy assembly without the need of a tool.
- Disc covers mounting hole and minimzes ingress of dust, dirt and water.
| Application | Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons. |
| Color | Black (BK) |
| Description | Developed especially for the automotive industry in applications including trunks, doors, wheel housings and dash panels. |
| Global Part Number | M6PUSHPIN-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 151-01304 |
| Product Subfamily | Push Pins with Fir Tree |
| Product family | Self-Affixing Push Pins |
| Short Description | Push Pin, Mounting Hole Dia. M6, PA66HIRHSUV, Black, 5000/carton |
| Type | M6PUSHPIN |
| UV Resistant | Yes |
| Fixation Method | Fir Tree |
| Height (imperial) | 0.53" |
| Height (metric) | 13.36mm |
| Hole Depth Max. (imperial) | 0.59" |
| Hole Depth Max. (metric) | 15.0mm |
| Hole Depth Min. (imperial) | 0.59" |
| Hole Depth Min. (metric) | 15.0mm |
| Length (imperial) | 0.51" |
| Length (metric) | 12.50mm |
| Min. Tensile Strength (imperial) | 25lbs |
| Min. Tensile Strength (metric) | 110N |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | M6 |
| Mounting Hole Shape | Circular |
| Panel Thickness (imperial) | 0.59" |
| Panel Thickness (metric) | M6mm |
| Panel Thickness Max. (Imperial) | 0.59" |
| Panel Thickness Max. (Metric) | 15.0mm |
| Panel Thickness Min. (Imperial) | 0.59" |
| Panel Thickness Min. (Metric) | 15.0mm |
| Stud Diameter (metric) | M6 |
| Width (imperial) | 0.49" |
| Width (metric) | 12.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | No |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
