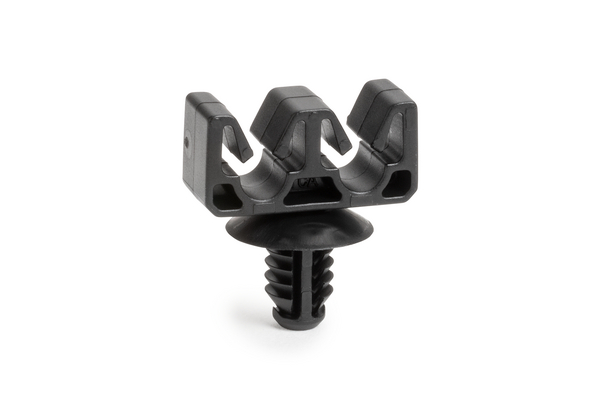

Brake Line Clip with 6.5 mm Fir Tree, 2x 5.1 mm diameter, POM, Black, 5000/ctn
Part No. 151-04829
|
Copied
- Delivers higher tube retention force than conventional open clips.
- Available for standard brake line diameter.
- Ensures a stable, secure hold while minimizing lateral tube movement.
- Fir tree can be inserted with low push-in force yet demonstrates high pull-out strength.
| Color | Black (BK) |
| Description | HellermannTyton's brake line clips are engineered to OEM specifications for a secure fit and long-term durability. |
| Global Part Number | HRMOC5.1FT6.5-POM-BK |
| Part Number | 151-04829 |
| Short Description | Brake Line Clip with 6.5 mm Fir Tree, 2x 5.1 mm diameter, POM, Black, 5000/ctn |
| Type | HRMOC5.1FT6.5 |
| Bundle Diameter (imperial) | 0.20-0.20" |
| Bundle Diameter Max. (imperial) | 0.20" |
| Bundle Diameter Max. (metric) | 5.1mm |
| Bundle Diameter Min. (imperial) | 0.20" |
| Bundle Diameter Min. (metric) | 5.1mm |
| Bundle Quantity | 2 |
| Disc Diameter (imperial) | 0.66" |
| Disc Diameter (metric) | 16.7mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 1.06" |
| Height (metric) | 26.8mm |
| Length (imperial) | 0.39" |
| Length (metric) | 10.0mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.1 - 7.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.28" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Panel Thickness (imperial) | 0.02 - 0.12" |
| Panel Thickness (metric) | 0.60 - 3.0mm |
| Panel Thickness Max. (Metric) | 3.0mm |
| Panel Thickness Min. (Metric) | 0.6mm |
| Width (imperial) | 0.39" |
| Width (metric) | 10.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | POM |
| Material | Polyacetal (POM) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
