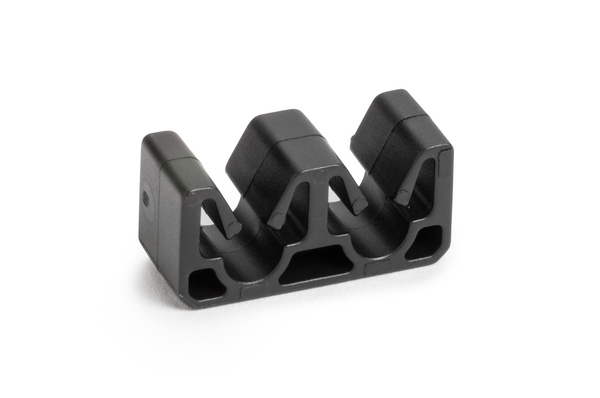

Brake Line Clip, 2x 5.1 mm diameter, POM, Black, 5000/ctn
Part No. 151-04828
|
Copied
- Delivers higher tube retention force than conventional open clips.
- Available for standard brake line diameter.
- Ensures a stable, secure hold while minimizing lateral tube movement.
| Bundle Diameter (imperial) | 0.20-0.20" |
| Bundle Diameter Max. (imperial) | 0.20" |
| Bundle Diameter Max. (metric) | 5.1mm |
| Bundle Diameter Min. (imperial) | 0.20" |
| Bundle Diameter Min. (metric) | 5.1mm |
| Bundle Quantity | 2 |
| Height (imperial) | 0.47" |
| Height (metric) | 12.0mm |
| Length (imperial) | 0.39" |
| Length (metric) | 10.0mm |
| Width (imperial) | 0.39" |
| Width (metric) | 10.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | POM |
| Material | Polyacetal (POM) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
